Product Details

Description



Features:

`Internal One Time Programmable ROM 8,192 X 8bits
                                                                8,128 X 8bits (Program area)
                                                               64 X 8bits (Option area)
`Internal Data RAM 256 X 4bits
`Wide operating voltage range 2.7V ~ 5.5V
`Package outline QFP44-A1 / SDIP42 (Compatible with NJU3505)
`ROM programmer "SUPERPRO/L" by XELTEK co,.

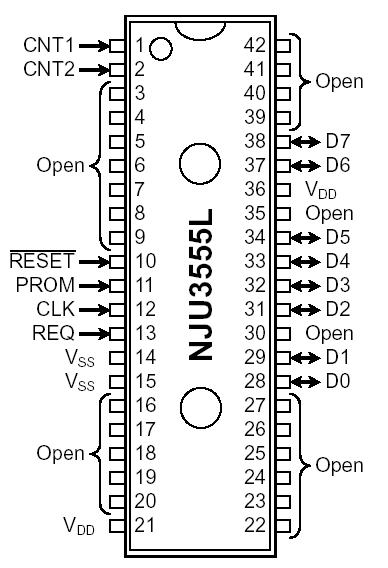

Pinout

Connection Diagram


Specifications

PARAMETER SYMBOL RATINGS UNIT
Supply Voltage VDD -0.3 ~ +7.0 V
Input Voltage VIN -0.3 ~ VDD + 0.3 V
Output Voltage VOUT -0.3 ~ VDD + 0.3 V
Analog Supply Voltage AVDD -0.3 ~ VDD + 0.3 V
Analog Reference Voltage VREF -0.3 ~ AVDD + 0.3 V
Analog Input Voltage AIN0 ~ AIN7 -0.3 ~ AVDD + 0.3 V
Operating Temperature Topr -20 ~ +75 °C
Storage Temperature Tstg -55 ~ +125 °C
Note)
The difference of electrical characteristics between NJU3555 (OTP version) and NJU3505 (MASK version)


Description

The NJU3555 is the C-MOS 4-bit Single Chip OTP type Micro Controller with programmable Flash Memory. NJU3555L is completely compatible with the NJU3505 in function and the pin configuration. Therefore, the NJU3555 is suitable for the final evaluation before NJU3505 mask generation, the small quantity production and short leadtime.
