Product Details

Description



Features:

`Internal One Time Programmable ROM 512 X 8bits
`Internal Data RAM 16 X 4bits
`Wide operating voltage range 2.7V ~ 5.5V
`Package outline DIP16 / DMP16
`ROM programmer "SUPERPRO/L" by XELTEK co,.


Pinout

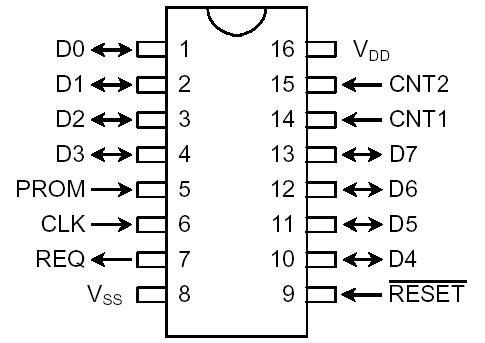

Connection Diagram


Specifications

PARAMETER SYMBOL RATINGS UNIT
Supply Voltage VDD -0.3 ~ +7.0 V
Input Voltage VIN -0.3 ~ VDD + 0.3 V
Output Voltage VOUT -0.3 ~ VDD + 0.3 V
Operating Temperature Topr -20 ~ +75 °C
Storage Temperature Tstg -55 ~ +125 °C
Note)
The difference of electrical characteristics between NJU3151 (OTP version) and NJU3101 (MASK version)


Description

The NJU3151 is the C-MOS 4-bit Single Chip OTP type Micro Controller with programmable Flash Memory. It is completely compatible with the NJU3101 in function and the pin configuration. Therefore, the NJU3151 is suitable for the final evaluation before NJU3101 mask generation, the small quantity production and short leadtime.
