Product Details

Description

Features:

`Internal One Time Programmable ROM 1,024 X 8bits
`Internal Data RAM 32 X 4bits
`Wide operating voltage range 2.7V ~ 5.5V
`Package outline SDIP22 / SOP22
`ROM programmer "SUPERPRO/L" by XELTEK co,.

Pinout

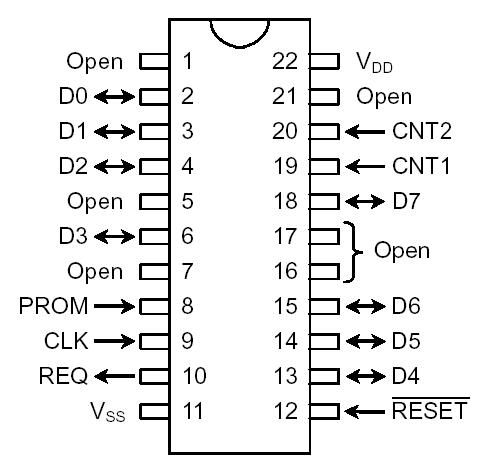

Connection Diagram

Specifications

PARAMETER	SYMBOL	RATINGS	UNIT
Supply Voltage	V_DD	-0.3 ~ +7.0	V
Input Voltage	V_IN	-0.3 ~ V_DD+ 0.3	V
Output Voltage	V_OUT	-0.3 ~ V_DD + 0.3	V
Operating Temperature	T_opr	-20 ~ +75	°C
Storage Temperature	T_stg	-55 ~ +125	°C

Note)
The difference of electrical characteristics between NJU3152 (OTP version) and NJU3102 (MASK version)

Description

The NJU3152 is the C-MOS 4-bit Single Chip OTP type Micro Controller with programmable Flash Memory.

NJU3152G is completely compatible with the NJU3102 in function and the pin configuration. Therefore, the NJU3152 is suitable for the final evaluation before NJU3102 mask generation, the small quantity production and short leadtime.
