Product Details

Description



Features:

`Internal One Time Programmable ROM 2,048 X 8bits
`Internal Data RAM 128 X 4bits
`Wide operating voltage range 2.7V ~ 5.5V
`Package outline SDIP28 / SDMP30 (Compatible with NJU3503)
`ROM programmer "SUPERPRO/L" by XELTEK co,.

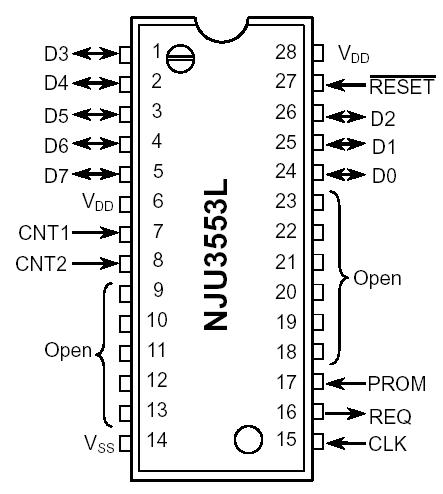

Pinout

Connection Diagram


Specifications

PARAMETER SYMBOL RATINGS UNIT
Supply Voltage VDD -0.3 ~ +7.0 V
Input Voltage VIN -0.3 ~ VDD + 0.3 V
Output Voltage VOUT -0.3 ~ VDD + 0.3 V
Analog Supply Voltage AVDD -0.3 ~ VDD + 0.3 V
Analog Reference Voltage VREF -0.3 ~ AVDD + 0.3 V
Analog Input Voltage AIN0 ~ AIN5 -0.3 ~ AVDD + 0.3 V
Operating Temperature Topr -20 ~ +75 °C
Storage Temperature Tstg -55 ~ +125 °C
Note)
The difference of electrical characteristics between NJU3553 (OTP version) and NJU3503 (MASK version)


Description

The NJU3553 is the C-MOS 4-bit Single Chip OTP type Micro Controller with programmable Flash Memory.

NJU3553L is completely compatible with the NJU3503 in function and the pin configuration. Therefore, the NJU3553 is suitable for the final evaluation before NJU3503 mask generation, the small quantity production and short leadtime.
