NDC7003P

Gate-Source Breakdown Voltage : +/- 20 V
Mounting Style : SMD/SMT
Packaging : Reel
Transistor Polarity : P-Channel
Maximum Operating Temperature : + 150 C
Configuration : Dual
Drain-Source Breakdown Voltage : - 60 V
Package / Case : SSOT-6
Resistance Drain-Source RDS (on) : 1.2 Ohms
Continuous Drain Current : 0.34 A


Features:

`-0.34A, -50V. R<sub>DS(ON)=</sub> 5 @ V<sub>GS</sub>=-10V.
`High density cell design for low R_DS(ON).
`Proprietary SuperSOTTM-6 package design using copper lead frame for superior thermal and electrical capabilities.
`High saturation current.

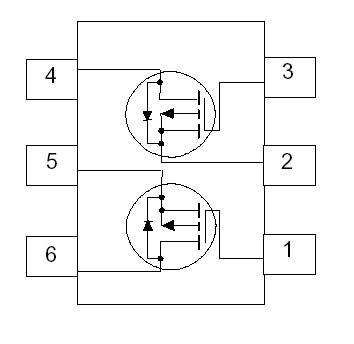

Pinout




Specifications

Symbol	Parameter		NDC7003P	Units
VDSS VGSS	Drain-Source Voltage Gate-Source Voltage - Continuous		-50 -20 -0.34 -1 0.96 0.9 0.7 -55 to 150	V V A W °C
ID	Drain Current Continuous Pulsed	(Note 1a)
PD	Maximum Power Dissipation	(Note 1a) (Note 1b) (Note 1c)
TJ,TSTG	Operating and Storage Junction Temperature Range

THERMAL CHARACTERISTICS

RJA RJC

Thermal Resistance, Junction-to-Ambient Thermal Resistance, Junction-to-Case

(Note 1a) (Note 1)

130 60

°C/W °C/W

Description

These dual P-Channel enhancement mode power field effect transistors NDC7003P are produced using Fairchild's proprietary, high cell density, DMOS technology. This very high density process has been designed to minimize on-state resistance, provide rugged and reliable performance and fast switching. NDC7003P is particularly suited to low voltage applications requiring a low current high side switch.

Parameters:

Technical/Catalog Information	NDC7003P
Vendor	Fairchild Semiconductor (VA)
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	2 P-Channel (Dual)
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25° C	340mA
Rds On (Max) @ Id, Vgs	5 Ohm @ 340mA, 10V
Input Capacitance (Ciss) @ Vds	66pF @ 25V
Power - Max	700mW
Packaging	Digi-Reel?
Gate Charge (Qg) @ Vgs	2.2nC @ 10V
Package / Case	SuperSOT-6
FET Feature	Logic Level Gate
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	NDC7003P NDC7003P NDC7003PDKR ND NDC7003PDKRND NDC7003PDKR
