NDC7002N

Transistor Polarity : N-Channel
Mounting Style : SMD/SMT
Packaging : Reel
Maximum Operating Temperature : + 150 C
Gate-Source Breakdown Voltage : 20 V
Configuration : Dual
Drain-Source Breakdown Voltage : 50 V
Package / Case : SSOT-6
Resistance Drain-Source RDS (on) : 2 Ohms
Continuous Drain Current : 0.51 A


Features:

`0.51A, 50V, R<sub>DS(ON)</sub> = 2 @ V<sub>GS</sub>=10V
`High density cell design for low R_DS(ON).
`Proprietary SuperSOTTM-6 package design using copper lead frame for superior thermal and electrical capabilities.
`High saturation current.

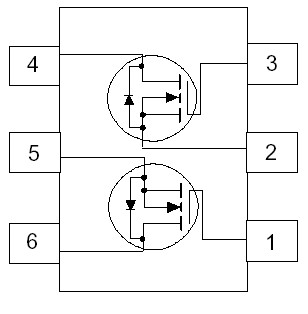

Pinout






Specifications

Symbol	Parameter		NDC7002N	Units
VDSS VGSS	Drain-Source Voltage Gate-Source Voltage - Continuous		50 20 0.51 1.5 0.96 0.9 0.7 -55 to 150	V V A W °C
ID	Drain Current Continuous Pulsed	(Note 1a)
PD	Maximum Power Dissipation	(Note 1a) (Note 1b) (Note 1c)
TJ,TSTG	Operating and Storage Junction Temperature Range

THERMAL CHARACTERISTICS

RJA RJC

Thermal Resistance, Junction-to-Ambient Thermal Resistance, Junction-to-Case

(Note 1a) (Note 1)

130 60

°C/W °C/W

Description

These dual N-Channel enhancement mode power field effect transistors NDC7002N are produced using Fairchild's proprietary, high cell density, DMOS technology. This very high density process has been designed to minimize on-state resistance, provide rugged and reliable performance and fast switching. NDC7002N is particularly suited for low voltage applications requiring a low current high side switch.

Parameters:

Technical/Catalog Information	NDC7002N
Vendor	Fairchild Semiconductor (VA)
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	2 N-Channel (Dual)
Drain to Source Voltage (Vdss)	50V
Current - Continuous Drain (Id) @ 25° C	510mA
Rds On (Max) @ Id, Vgs	2 Ohm @ 510mA, 10V
Input Capacitance (Ciss) @ Vds	20pF @ 25V
Power - Max	700mW
Packaging	Digi-Reel?
Gate Charge (Qg) @ Vgs	1nC @ 10V
Package / Case	SuperSOT-6
FET Feature	Logic Level Gate
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	NDC7002N NDC7002N NDC7002NDKR ND NDC7002NDKRND NDC7002NDKR
