MXD1320

Features: • Fully support China Digital TV Terrestrial Broadcasting System Standard (GB20600-2006)• Support single and multi carrier receiver solution• Support dual modes: C = 1, C = 3780• Modulation modes: 4QAM-NR, 4QAM, 16QAM, 32QAM, 64QAM• Forward Error Correction ...

product image

MXD1320 Picture
See larger image
SeekIC No. : 004431939 Detail

MXD1320: Features: • Fully support China Digital TV Terrestrial Broadcasting System Standard (GB20600-2006)• Support single and multi carrier receiver solution• Support dual modes: C = 1, C...

MXD1320 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MXD1320
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Fully support China Digital TV Terrestrial Broadcasting System Standard (GB20600-2006)
• Support single and multi carrier receiver solution
• Support dual modes: C = 1, C = 3780
• Modulation modes: 4QAM-NR, 4QAM, 16QAM, 32QAM, 64QAM
• Forward Error Correction Coding Rate: 0.4, 0.6, 0.8
• Symbol de-interleave : none, 240, 720
• Guard Interval: 420 (fixed/rotate phase), 595, 945 (fixed/rotate phase)
• Automatic transmission mode detection and synchronization
• Integrated low power dual-channel 10-bit ADC
• Support 16.384/24.576MHz oscillator
• Support of ZIF, LIF (8.192MHz) and IF (36MHz) input from tuner
• I2C master and PWM AGC for tuner control
• Flexible host interfaces including MPEG2-TS serial/parallel and I2C
• High performance: -97dbm sensitivity
• Fast TPS acquisition: < 100ms
• Ultra compact package: 128pin LQFP(14x14x1.4mm3)(MXD1320)
• Low power consumption: < 150mW (including ADC)
• Excellent ability to resist multi-path interference and Doppler effect


Pinout

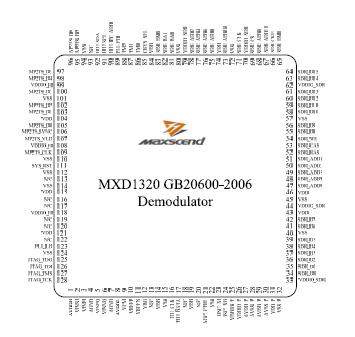

Connection Diagram


Description

MXD1320 is a demodulator designed for China Digital Television Terrestrial Broadcasting (GB 20600-2006) standard. It is fully compliant with China Digital Television specifications, including both the single-carrier mode and multi-carrier mode. It can totally support 330 modes defined in GB 20600-2006.

The MXD1320 can be integrated into Set-Top Box or DTV set.
