MX10F201FC

·80C51 CPU core
·4.5 ~ 5.5V voltage range
·2 to 16MHz clock frequency
·16K bytes MTP memory for code memory
·512 bytes internal data RAM
·Low power consumption
·Up to 16 digits LCD driver/controller
·Four 8 bit general purpose I/O ports
·Two standard 16-bit Timers
·On-chip Watch Dog Timer
·Two channel PWM outputs
·UART
·8 interrupt sources

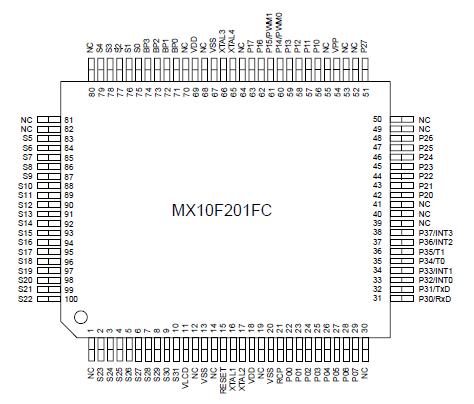

·100 pin PQFP package
·Single clock or dual clock
·EMI compatibility

The MX10F201FC is a stand-alone high-performance and low power microcontroller designed for use in many applications which need code programmability.

The Flash EPROM offers customers to program the device themselves. This feature increases the flexibility in many applications, not only in development stage, but also in mass production stage.

In addition to the 80C51 standard functions, the MX10F201FC provides a number of dedicated hardware functions. MX10F201FC is a control-oriented CPU with on-chip program and data memory. It can execute program with internal memory up to 16k bytes. MX10F201FC has four software selectable modes of reduced activity for power reduction : active power control, idle, sleep, and Power-down. The idle mode freezes the CPU while allowing the RAM, Timers, serial ports, interrupt system and other peripherals to continue functioning. The Power-down mode saves the RAM contents but freezes the oscillator causing all other chip functions to be inoperative. Power-down mode can be terminated by an external reset ,and in addition , by either of the four external interrupts. The sleep mode behaves like power down mode, but with LCD and oscillator still turning on. And sleep mode can be terminated as the power down mode does.
