Features: • Small signal gain amplifier• Low current draw• Wide bandwidth• 50 Ohms input & output• Low cost surface mount small plastic package SOT-343 (4 lead SC-70)• Tape-and-reel packaging option availableApplication• Cellular/PCS/WLL basestations&#...

See larger image

SeekIC No. : 004427515 Detail

MSA-2743: Features: • Small signal gain amplifier• Low current draw• Wide bandwidth• 50 Ohms input & output• Low cost surface mount small plastic package SOT-343 (4 lead SC-7...

MSA-2743 Data Sheet

Get Latest Price

Part Number:: MSA-2743
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

MSA-0100 evaluate
Features: • Cascadable 50 W Gain Block• 3 dB Bandwidth: DC to 1.3 GHz• High Gain...
MSA-0104 evaluate
Features: • Cascadable 50 W Gain Block• 3 dB Bandwidth: DC to 0.8 GHz• High Gain...
MSA-0135 evaluate
Features: • Cascadable 50 Gain Block• 3 dB Bandwidth: DC to 1.2 GHz• High Gain:...

Product Details

Description

Features:

• Small signal gain amplifier
• Low current draw
• Wide bandwidth
• 50 Ohms input & output
• Low cost surface mount small plastic package SOT-343 (4 lead SC-70)
• Tape-and-reel packaging option available

Application

• Cellular/PCS/WLL basestations
• Wireless data/WLAN
• Fiber-optic systems
• ISM
• General purpose gain block amplifier

Pinout

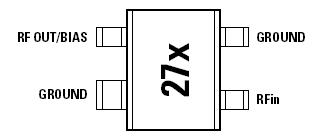

Connection Diagram

Specifications

Symbol	Parameter	Units	Absolute Maximum
I_d	Device Current	mA	80
P_diss	Total Power Dissipation^[2]	mW	330
P_{in max.}	RF Input Power	dBm	20
T_Jmax	Junction Temperature	°C	150
T_STG	Storage Temperature	°C	-65 to 150
_jc	Thermal Resistance^[3]	°C/W	115

Notes:
1. Operation of this device above any one of these parameters may cause permanent damage.
2. Ground lead temperature is 25°C. Derate 8.7 mW/°C for T_L > 112°C.
3. Thermal resistance measured using 150°C Liquid Crystal Measurement method.

Description

Agilent Technologies' MSA-2743 is a low current silicon gain block MMIC amplifier housed in a 4-lead SC-70 (SOT-343) surface mount plastic package.

MSA-2743 Providing a nominal 15.5 dB gain at up to 15 dBm Pout, this device is ideal for small-signal gain stages or IF amplification.

The Darlington feedback structure of MSA-2743 provides inherent broad bandwidth performance. The 25 GHz f_t fabrication process results in a device with low current draw and useful operation to past 3 GHz.
