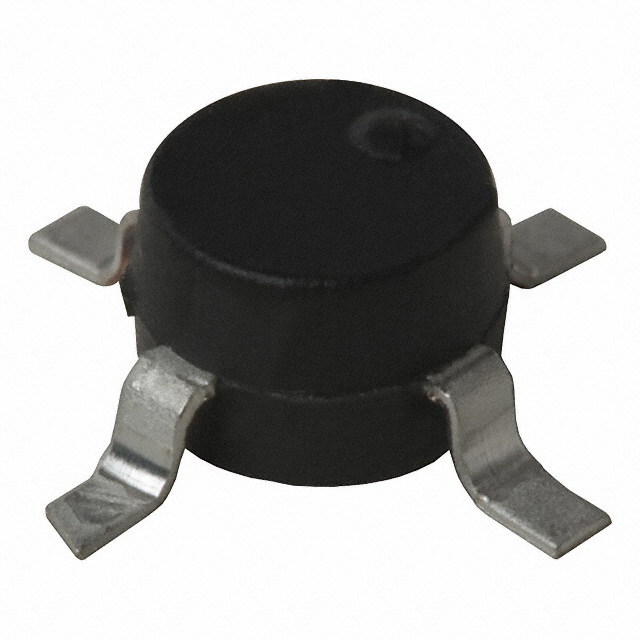

MSA-1105-TR1

Series: -
Manufacturer: Avago Technologies US Inc.
Gain: 12dB
Packaging: Tape & Reel (TR)
P1dB: 17.5dBm (56.2mW)
Test Frequency: 500MHz
RF Type: ISM, PCS, WLL, 802.16/WiMax
Noise Figure: 3.6dB
Current - Supply: 80mA
Package / Case: 4-SMD (05 Plastic)
Frequency: 50MHz ~ 1.3GHz
Voltage - Supply: 4.4 V ~ 6.6 V


Description

The MSA-1105-TR1 is designed as a high performance silicon bipolar monolithic microwave integrated circuit (MMIC) housed in a low cost, surface mount plastic package. This MMIC is for high dynamic range in either 50 or 75W systems by combining low noise figure with high IP3. Typical applications include narrow and broadband linear amplifiers in commercial and industrial systems.

MSA-1105-TR1 has six features. (1)High dynamic range cascadable 50W or 75W gain block. (2)3dB bandwidth: 50MHz to 1.3GHz. (3)17.5dBm typical P1dB at 0.5GHz. (4)3.6dB typical noise figure at 0.5GHz. (5)Surface mount plastic package. (6)Tape-and-reel packaging option available. Those are all the main features.

Some absolute maximum ratings of MSA-1105-TR1 have been concluded into several points as follow. (1)Its device current would be 80mA. (2)Its power dissipation would be 550mW. (3)Its RF input power would be +13dBm. (4)Its junction temperature would be 150°C. (5)Its storage temperature range would be from -65°C to 150°C. It should be noted that stresses above those listed in absolute maximum ratings may cause permanent damage to device.

Also some electrical characteristics of MSA-1105-TR1 are concluded as follow. (1)Its power gain would be min 10dB and typ 12.7dB at f=0.05GHz and would be min 10dB and typ 12.0dB at f=0.5GHz and would be min 10dB and typ 10.5dB at f=1GHz. (2)Its gain flatness would be typ +/-1.0dB. (3)Its 3dB bandwidth would be typ 1.3GHz. (4)Its input VSWR would be typ 1.5:1. (5)Its output VSWR would be typ 1.7:1. (6)Its 50ohms noise figure would be typ 3.6dB. (7)Its output power at 1dB gain compression would be typ 17.5dBm. (8)Its third order intercept point would be typ 30dBm. (9)Its group delay would be typ 200ps. (10)Its device voltage would be min 4.4V and typ 5.5V and max 6.6V. And so on. If you have any question or suggestion or want to know more information please contact us for details. Thank you!

Parameters:

Technical/Catalog Information	MSA-1105-TR1
Vendor	Avago Technologies US Inc.
Category	RF and RFID
Package / Case	5-SMD
Voltage - Supply	4.4V ~ 6.6V
Current - Supply	80mA
Gain	12dB
Frequency	50MHz ~ 1.3GHz
RF Type	ISM, PCS, WLL, 802.16/WiMax
Packaging	Tape & Reel (TR)
Noise Figure	3.6dB
P1db	17.5dBm
Test Frequency	500MHz
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	MSA 1105 TR1 MSA1105TR1 516 1517 2 ND 51615172ND 516-1517-2
