MSA-0386-TR2G, US $ .76-.86 , Avago Technologies, MSA-0386-TR2G DataSheet download, circuit diagram from SeekIC.com

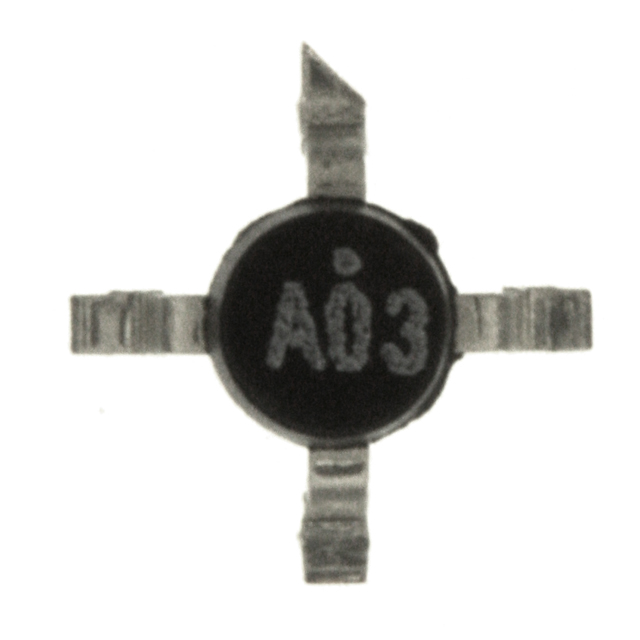

See larger image

SeekIC No. : 00612337 Detail

MSA-0386-TR2G: RF Amplifier Amplifier Si RFIC

MSA-0386-TR2G Data Sheet

US $ .76~.86 / Piece | Get Latest Price

Part Number:: MSA-0386-TR2G
Mfg:: Avago Technologies
Supply Ability:: 5000

Price Break

Qty
0~2500
2500~4000
4000~8000

Unit Price
$.86
$.81
$.76

Processing time
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/2/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

MSA-0100 evaluate
Features: • Cascadable 50 W Gain Block• 3 dB Bandwidth: DC to 1.3 GHz• High Gain...
MSA-0104 evaluate
Features: • Cascadable 50 W Gain Block• 3 dB Bandwidth: DC to 0.8 GHz• High Gain...
MSA-0135 evaluate
Features: • Cascadable 50 Gain Block• 3 dB Bandwidth: DC to 1.2 GHz• High Gain:...

Product Details

Quick Details

Type :	General Purpose Amplifier	Operating Frequency :	0 Hz to 2.4 GHz
Noise Figure :	6 dB at 1 GHz	Bandwidth :	2400 MHz
Output Intercept Point :	23 dBm	Operating Supply Voltage :	6 V
Supply Current :	40 mA	Maximum Operating Temperature :	+ 150 C
Mounting Style :	SMD/SMT	Package / Case :	Micro-86
Packaging :	Reel

Description

Mounting Style : SMD/SMT
Maximum Operating Temperature : + 150 C
Packaging : Reel
Type : General Purpose Amplifier
Operating Supply Voltage : 6 V
Supply Current : 40 mA
Operating Frequency : 0 Hz to 2.4 GHz
Noise Figure : 6 dB at 1 GHz
Bandwidth : 2400 MHz
Output Intercept Point : 23 dBm
Package / Case : Micro-86

Parameters:

Technical/Catalog Information	MSA-0386-TR2G
Vendor	Avago Technologies US Inc.
Category	RF and RFID
Package / Case	86-SMD
Voltage - Supply	4V ~ 6V
Current - Supply	20mA ~ 50mA
Gain	10dB ~ 12dB
Frequency	0Hz ~ 2.4GHz
RF Type	ISM, PCS, WLL, 802.16/WiMax
Packaging	Tape & Reel (TR)
Noise Figure	6dB
P1db	10dBm
Test Frequency	1GHz
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	MSA 0386 TR2G MSA0386TR2G
