MPIC2130

Features: • Floating Channel Designed for Bootstrap Operation• Fully Operational to +600 V• Tolerant to Negative Transient Voltage• dV/dt Immune• Gate Drive Supply Range from 10 to 20 V• Undervoltage Lockout for All Channels• Overcurrent Shut Down Turns Of...

product image

MPIC2130 Picture
See larger image
SeekIC No. : 004426287 Detail

MPIC2130: Features: • Floating Channel Designed for Bootstrap Operation• Fully Operational to +600 V• Tolerant to Negative Transient Voltage• dV/dt Immune• Gate Drive Supply Rang...

MPIC2130 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MPIC2130
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Floating Channel Designed for Bootstrap Operation
• Fully Operational to +600 V
• Tolerant to Negative Transient Voltage
• dV/dt Immune
• Gate Drive Supply Range from 10 to 20 V
• Undervoltage Lockout for All Channels
• Overcurrent Shut Down Turns Off All Six Drivers
• Independent Halfbridge Drivers
• Matched Propagation Delay for All Channels
• Outputs Out of Phase with Inputs


Pinout

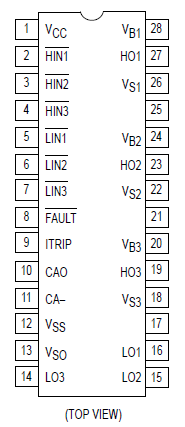

Connection Diagram


Specifications

Rating
Symbol
Min
Max
Unit
High Side Floating Absolute Voltage
High Side Floating Supply Offset Voltage
High Side Floating Output Voltage
Fixed Supply Voltage
Low Side Driver Return
Low Side Output Voltage
Logic Input Voltage (HIN, LIN, & ITRIP)
Fault Output Voltage
Amplifier Output Voltage
Amplifier Inverting Input Voltage
VB1,2,3
VS1,2,3
VHO1,2,3
VCC
VSO
VLO1,2,3
VIN
FAULT
CAO
CA
0.3
VB1,2,325
VS1,2,30.3
0.3
VCC0.3
VSO0.3
0.3
0.3
0.3
0.3
625
VB1,2,3+0.3
VB1,2,3+0.3
25
VCC+0.3
VCC+0.3
VCC+0.3
VCC+0.3
VCC+0.3
VCC+0.3

VDC







Allowable Offset Supply Voltage Transient
dVS/dt
50
V/ns
*Package Power Dissipation @ TA +25
PD
1.5
Watt
Operating and Storage Temperature
Tj, Tstg
-55
150
Thermal Resistance, Junction to Ambient
RqJA
83
/W
Lead Temperature for Soldering Purposes, 10 seconds
TL
260



Description

The MPIC2130 is a high voltage, high speed, power MOSFET and IGBT driver ith three independent high side and low side referenced output channels for Phase applications. Proprietary HVIC technology enables ruggedized monolithic onstruction. Logic inputs of MPIC2130 are compatible with 5 V CMOS or LSTTL outputs. A round referenced operational amplifier provides an analog feedback of bridge urrent via an external current sense resistor. A current trip function which terminates ll six outputs is also derived from this resistor. An open drain FAULT signal s provided to indicate that an overcurrent or undervoltage shutdown has occurred. The output drivers feature a high pulse current buffer stage designed for inimum driver crossconduction. Propagation delays MPIC2130 are matched to simplify use in high frequency applications. The floating channels can be used to drive Nchannel power MOSFET or IGBT's in the high side configuration which operate from 10 to 600 volts.
