MPIC2113

Application

• Floating Channel Designed for Bootstrap Operation
• Fully Operational to +600 V
• Tolerant to Negative Transient Voltage
• dV/dt Immune
• Gate Drive Supply Range from 10 to 20 V
• Undervoltage Lockout for Both Channels
• Separate Logic Supply
• Operating Supply Range from 5 to 20 V
• Logic and Power Ground Operating Offset Range from 5 to +5 V
• CMOS Schmitttriggered Inputs with Pulldown
• Cycle by Cycle Edgetriggered Shutdown Logic
• Matched Propagation Delay for Both Channels
• Outputs In Phase with Inputs

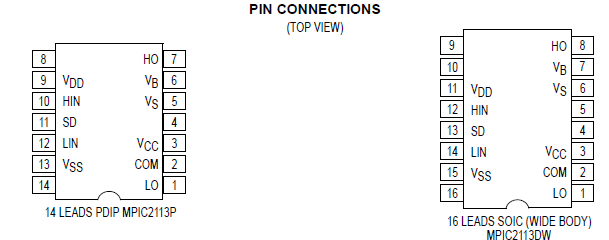

Pinout

Specifications

Rating	Symbol	Min	Max	Unit
High Side Floating Absolute Voltage High Side Floating Supply Offset Voltage High Side Floating Output Voltage Low Side Fixed Supply Voltage Low Side Output Voltage Logic Supply Voltage Logic Supply Offset Voltage Logic Input Voltage (HIN, LIN & SD)	VB VS VHO VCC VLO VDD VSS VIN	0.3 VB25 VS0.3 0.3 0.3 0.3 VCC25 VSS0.3	625 VB+0.3 VB+0.3 25 VCC+0.3 VSS+25 VCC+0.3 VDD+0.3	VDC
Allowable Offset Supply Voltage Transient	dVS/dt		50	V/ns
*Package Power Dissipation @ TA 3 +25 (14 Lead DIP) (16 SOICWIDE)	PD		1.6 1.25	Watt
Thermal Resistance, Junction to Ambient (14 Lead DIP) (16 SOICWIDE)	RqJA		75 100	W
Operating and Storage Temperature	Tj, Tstg	55	150
Lead Temperature for Soldering Purposes, 10 seconds	TL		260

Description

The MPIC2113 is a high voltage, high speed, power MOSFET and IGBT driver with independent high and low side referenced output channels. Proprietary HVIC and latch immune CMOS  echnologies enable ruggedized monolithic construction. Logic inputs are compatible with standard CMOS or LSTTL outputs. The output drivers MPIC2113 feature a high pulse current buffer stage designed for minimum driver crossconduction. Propagation delays are matched to simplify use in high frequency applications. The floating channel of MPIC2113 can be used to drive an Nchannel power MOSFET or IGBT in the high side configuration which operates from 10 to 600 volts.
