MN65761T

Features:

·Maximum conversion rate: 18 MSPS (min.)
·Linearity error: ±1.3 LSB (typ.)
·Differential linearity error: ±0.6 LSB (typ.)
·Power supply voltage: 3.6 V or 2.6 V
·Power consumption: 60 mW (typ.) (fCLK=18 MHz)


Application

·Digital television receivers
·Digital video equipment
·Digital image processing equipment

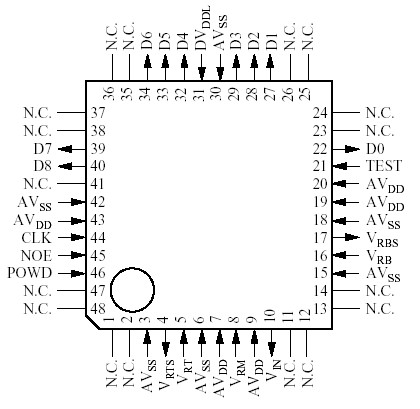

Pinout




Specifications

Parameter	Symbol	Rating	Unit
Power supply voltage	VDD	0.3 to +7.0	V
Power supply voltage for digital output circuits	DVDDL	0.3 to VDD +0.3	V
Input voltage	VI	0.3 to VDD +0.3	V
Output voltage	VO	0.3 to VDD +0.3	V
Operating ambient temperature	Topr	20 to +70	°C
Storage temperature	Tstg	55 to +125	°C

Description

The MN65761T is a high-speed 9-bit CMOS analogto- digital converter for image processing applications.

It uses a half flash structure based on chopper comparators and achieves both high speed and low power consumption with multiplexing. MN65761T provides separate power supply pins for the circuits driving the low-voltage digital output pins.
