Product Details

Description



Features:

·Maximum conversion rate: 15 MSPS (min.)
·Linearity error: ±0.5 LSB (typ.)
·Differential linearity error: ±0.4 LSB (typ.)
·Power supply voltage: 4.40 to 5.25 V
·Power consumption: 90 mW (typ.)


Application

·Digital television receivers
·Digital video equipment
·Digital image processing equipment

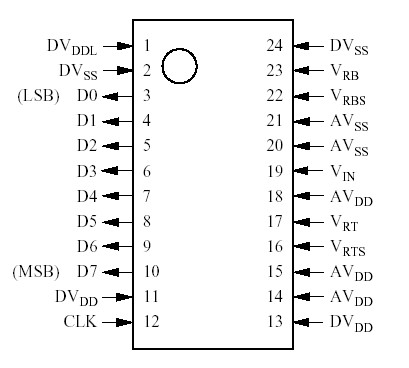

Pinout

Connection Diagram


Specifications

Parameter Symbol Rating Unit
Power supply voltage VDD 0.3 to +7.0 V
Power supply voltage for digital outputs DVDDL 0.3 to + VDD +0.3 V
Input voltage VI AVSS 0.3 to VDD +0.3 V
Output voltage VO DVSS 0.3 to VDD +0.3 V
Operating ambient temperature Topr 20 to +70 °C
Storage temperature Tstg 55 to +125 °C



Description

The MN655431SH is an 8-bit CMOS analog-to-digital converter with a maximum conversion rate of 15 MSPS.

MN655431SH uses a half flash structure based on chopper comparators and achieves both high speed and low power consumption with multiplex processing.

MN655431SH provides separate power supply pins for the circuits driving the low-voltage digital output pins.
