MN65543S

Features: ·Maximum conversion rate: 15 MSPS (min.)·Linearity error: ±0.5 LSB (typ.)·Differential linearity error: ±0.3 LSB (typ.)·Power supply voltage: 4.40 to 5.25 V·Power consumption: 90 mW (typ.)Application·Digital television receivers·Digital video equipment·Digital image processing equipmentP...

product image

MN65543S Picture
See larger image
SeekIC No. : 004424659 Detail

MN65543S: Features: ·Maximum conversion rate: 15 MSPS (min.)·Linearity error: ±0.5 LSB (typ.)·Differential linearity error: ±0.3 LSB (typ.)·Power supply voltage: 4.40 to 5.25 V·Power consumption: 90 mW (typ.)...

MN65543S Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MN65543S
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Maximum conversion rate: 15 MSPS (min.)
·Linearity error: ±0.5 LSB (typ.)
·Differential linearity error: ±0.3 LSB (typ.)
·Power supply voltage: 4.40 to 5.25 V
·Power consumption: 90 mW (typ.)


Application

·Digital television receivers
·Digital video equipment
·Digital image processing equipment

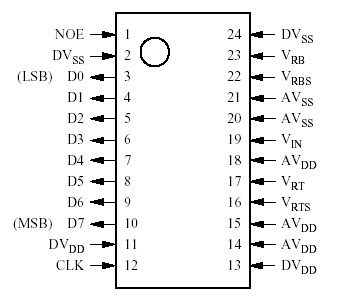

Pinout

Connection Diagram


Specifications

Parameter Symbol Rating Unit
Power supply voltage VDD 0.3 to +7.0 V
Input voltage VI AVSS 0.3 to VDD +0.3 V
Output voltage VO DVSS 0.3 to VDD +0.3 V
Operating ambient temperature Topr 20 to +70 °C
Storage temperature Tstg 55 to +125 °C



Description

The MN65543S is an 8-bit CMOS analog-to-digital converter with a maximum conversion rate of 15 MSPS.

MN65543S uses a half flash structure based on chopper comparators and achieves both high speed and low power consumption with multiplex processing.
