Product Details

Description



Features:

·Maximum conversion rate: 20 MSPS (min.)
·Linearity error: ±0.5 LSB (typ.)
·Differential linearity error: ±0.5 LSB (typ.)
·Power supply voltage: 5.0 ±0.5 V
·Power consumption: 100 mW (typ.)
·Built-in 3-input multiplexer, clamp circuit, and reference voltage power supply


Application

·Digital television receivers
·Digital video equipment
·Picture in picture systems
·Digital image processing equipment


Pinout

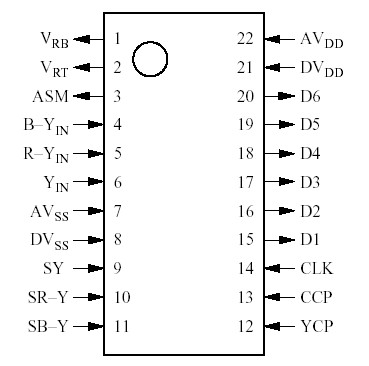

Connection Diagram


Specifications

Parameter Symbol Rating Unit
Power supply voltage for digital circuits DVDD 0.3 to +7.0 V
Power supply voltage for analog circuits AVDD 0.3 to +7.0 V
Input voltage VI AVSS 0.3 to VDD +0.3 V
Output voltage VO DVSS 0.3 to VDD +0.3 V
Operating ambient temperature Topr 20 to +75 °C
Storage temperature Tstg 55 to +125 °C



Description

The MN65531AS is a totally parallel 6-bit CMOS analog- to-digital converter with a maximum conversion rate of 20 MSPS. MN65531AS includes a built-in 3-input multiplexer, clamp circuit, and reference voltage power supply.
