Product Details

Description



Features:

·Maximum conversion rate: 20 MSPS (min.)
·Linearity error: ±0.9 LSB (typ.)
·Differential linearity error: ±0.5 LSB (typ.)
·Power supply voltage: 3.6 V or 2.6 V
·Power consumption: 50 mW (typ.) (fCLK=16 MHz)


Application

·Digital television receivers
·Digital video equipment
·Digital image processing equipment


Pinout

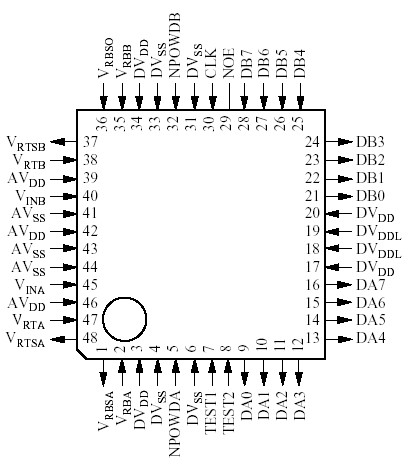

Connection Diagram


Specifications

Parameter Symbol Rating Unit
Power supply voltage VDD 0.3 to +7.0 V
Power supply voltage for digital output circuits DVDDL 0.3 to VDD +0.3 V
Input voltage VI 0.3 to VDD +0.3 V
Output voltage VO 0.3 to VDD +0.3 V
Operating ambient temperature Topr 20 to +70 °C
Storage temperature Tstg 55 to +125 °C



Description

The MN65752H is an 8-bit, 2-channel CMOS analogto- digital converter for image processing applications.

MN65752H uses a half flash structure based on chopper comparators and achieves both high speed and low power consumption with multiplexing.It provides separate power supply pins for the circuits driving the low-voltage digital output pins.
