MN65702H

Features: ·Maximum conversion rate: 20 MSPS (min.)·Linearity error: ±0.2 LSB (typ.)·Differential linearity error: ±0.2 LSB (typ.)·Power supply voltage: VDD= 3.3 ±0.3 V, VCC= 4.8 ±0.3 V·Full scale current: 2.33 mA (typ.)·Power consumption: 100 mW (typ.) (fCLK=15 MHz)·Built-in LPF and synchronizatio...

product image

MN65702H Picture
See larger image
SeekIC No. : 004424666 Detail

MN65702H: Features: ·Maximum conversion rate: 20 MSPS (min.)·Linearity error: ±0.2 LSB (typ.)·Differential linearity error: ±0.2 LSB (typ.)·Power supply voltage: VDD= 3.3 ±0.3 V, VCC= 4.8 ±0.3 V·Full scale cu...

MN65702H Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MN65702H
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Maximum conversion rate: 20 MSPS (min.)
·Linearity error: ±0.2 LSB (typ.)
·Differential linearity error: ±0.2 LSB (typ.)
·Power supply voltage: VDD= 3.3 ±0.3 V, VCC= 4.8 ±0.3 V
·Full scale current: 2.33 mA (typ.)
·Power consumption: 100 mW (typ.) (fCLK=15 MHz)
·Built-in LPF and synchronization function.


Application

·Digital television
·Digital video equipment
·Digital image processing equipment


Pinout

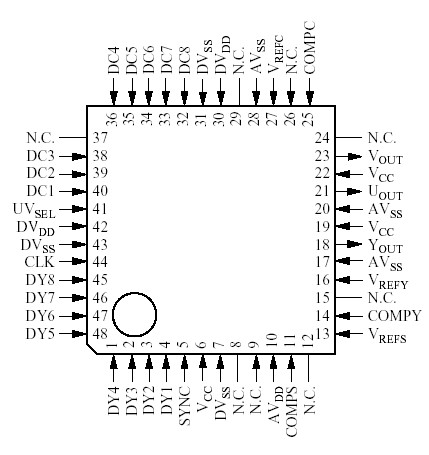

Connection Diagram


Specifications

Parameter Symbol Rating Unit
Power supply voltage DVDD/AVDD 0.3 to +7.0 V
Power supply voltage for analog circuits VCC 0.3 to +7.0 V
Input voltage VI 0.3 to DVDD +0.3 V
Output voltage VO 0.3 to AVDD +0.3 V
Operating ambient temperature Topr 20 to +70 °C
Storage temperature Tstg 55 to +125 °C



Description

The MN65702H is a high-speed 8-bit, 3-channel CMOS digital-to-analog converter. (Two channels use serial input.)

MN65702H  uses both a matrix cell and weighted current technology to achieve both low power consumption and high speed.

MN65702H features built-in output resistor, reference resistor, and low pass filter, and provides independent output amplitude adjustment for the Y (luminance) and C (chroma) synchronization signals. The Y (luminance signal) can be superimposed with an external SYNC signal.
