Product Details

Description



Features:

·Maximum conversion rate: 20 MSPS (min.)
·Linearity error: ±0.2 LSB (typ.)
·Differential linearity error: ±0.2 LSB (typ.)
·Power supply voltage: 3.5±0.1 V
·Full scale current: 4 mA (typ.)
·Power consumption: 84 mW (typ.) (fCLK=15 MHz)


Application

·Digital television
·Digital video equipment
·Digital image processing equipment


Pinout

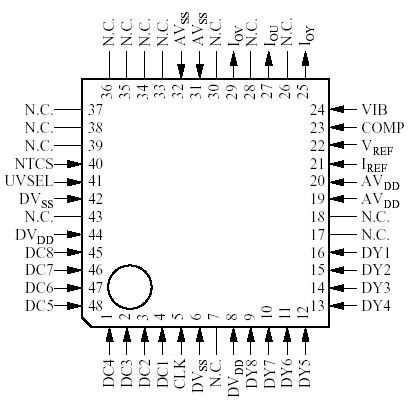

Connection Diagram


Specifications

Parameter Symbol Rating Unit
Power supply voltage for digital circuits DVDD 0.3 to +7.0 V
Power supply voltage for analog circuits AVDD 0.3 to +7.0 V
Input voltage VI DVSS 0.3 to DVDD +0.3 V
Output voltage VO AVSS 0.3 to AVDD +0.3 V
Operating ambient temperature Topr 20 to +70 °C
Storage temperature Tstg 55 to +125 °C



Description

The MN657011H is an 8-bit, 3-channel CMOS digitalto- analog converter with a maximum conversion rate of 20 MSPS.

MN657011H is a 3.5 volt version of the MN65701FHP.
