MN6556A

Features: ·Maximum conversion rate: 20 MSPS (min.)·Linearity error: ±0.3 LSB (typ.)·Differential linearity error: ±0.3 LSB (typ.)·Power supply voltage: 5.0±0.5 V·Power consumption: 50 mW (typ.)·Full scale current: 5 mA (typ.)Application·Digital television·Digital video equipment·Digital image proc...

product image

MN6556A Picture
See larger image
SeekIC No. : 004424660 Detail

MN6556A: Features: ·Maximum conversion rate: 20 MSPS (min.)·Linearity error: ±0.3 LSB (typ.)·Differential linearity error: ±0.3 LSB (typ.)·Power supply voltage: 5.0±0.5 V·Power consumption: 50 mW (typ.)·Full...

MN6556A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MN6556A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Maximum conversion rate: 20 MSPS (min.)
·Linearity error: ±0.3 LSB (typ.)
·Differential linearity error: ±0.3 LSB (typ.)
·Power supply voltage: 5.0±0.5 V
·Power consumption: 50 mW (typ.)
·Full scale current: 5 mA (typ.)


Application

·Digital television
·Digital video equipment
·Digital image processing equipment
·Measuring instrument


Pinout

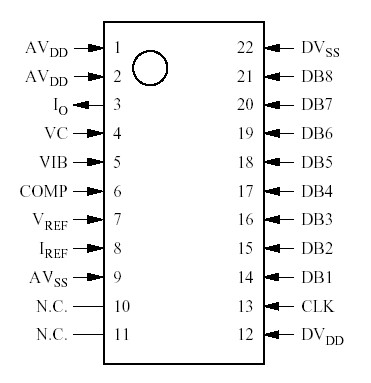

Connection Diagram


Specifications

Parameter Symbol Rating Unit
Power supply voltage for digital circuits DVDD 0.3 to +7.0 V
Power supply voltage for analog circuits AVDD 0.3 to +7.0 V
Input voltage VI AVSS 0.3 to VDD +0.3 V
Output voltage VO DVSS 0.3 to VDD +0.3 V
Operating ambient temperature Topr 20 to +70 °C
Storage temperature Tstg 55 to +125 °C



Description

The MN6556A and MN6556AS are 8-bit CMOS digital- to-analog converters with a maximum conversion rate of 20 MSPS.

MN6556A and MN6556AS  use both a matrix cell and weighted current technology to achieve a low power consumption of only 50 mW. Output has an amplitude of one volt above the ground level.
