Product Details

Description



Features:

• Supporting GSM frequency band
   Output frequency: 1.0 GHz (max.) Output power: 4 dBm(Typical, VBB = 1.0 Vp-p input)
• Low voltage operation: VCC = 2.6 V to 3.8 V
• Low current: Please refer to below table.
• Offset mixer on-chip: The separate power supply control is possible. (only MB54608L)
• Output power level switch (Mode) enables high power mode
  Offset Mixer not used Offset Mixer used
Mode = Open Mode = GND Mode = Open Mode = GND
Normal
operation		 Icc 16.5 mA 19.0 mA 22.5 mA 25.0 mA
Pout(VBB=1.0 Vpp) 4 dBm 2 dBm 4 dBm 2 dBm
Power down Ips 0.22 mA 0.44 mA
Note:Typical values
         Further increase of the output power is possible by attaching a resistor at Pcnt pin.
• Operating temperature range: Ta = 20 to +75°C


Pinout

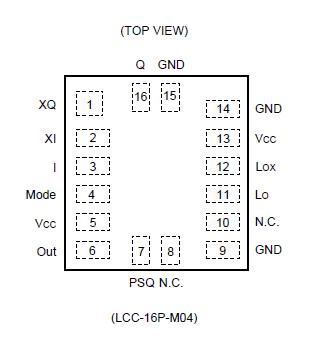

Connection Diagram


Specifications

Parameter Symbol Rating Unit Unit
Min. Max.
Power supply voltage VCC 0.5 +5.0 V
Output voltage VO 0.5 VCC + 0.5 (<5.0) V
Input voltage VI 0.5 VCC + 0.5 (<5.0) V
Allowed voltage on the open
collector pin		 VOC VCC 0.3
(0.5)		 VCC + 0.3
(5.0)		 V Out pin,
Open is prohibited.
Output current IO 0 +10 mA
Storage temperature Tstg 55 +125 °C
WARNING: Semiconductor devices can be permanently damaged by application of stress (voltage, current,
                  temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.


Description

The MB54608B is an I/Q Modulator for direct conversion method, and is used for up to 1.0 GHz band digital cellular phones such as GSM, PDC and so on.

MB54608B consists of a frequency doubler, a Flip-flop type quadrature phase shifter, I/Q modulator and a mixer for frequency offset with a separate power supply.

Fujitsu's advanced Bipolar process has realized very low current operation(ICC = 16.5 mA @3 V). SSOP-20 and BCC-16 package are available.(MB54608L: SSOP-20, MB54608B: BCC-16)
