Features:


                                             Amplifier                            Mixer
• Supply voltage                  3V (typ.)                            3V (typ.)
• Current consumption        3mA (typ.)                         3mA (typ.)
• Input frequency                1.1GHz (max.)                   1.1GHz (max.)
• Gain                                  14dB (typ.)*1                    15dB (typ.)*2
• Noise figure                      2.2dB (typ.)*1                   5dB (SSB, typ.)*2
• 1dB compression point     1dBm (typ.)*1
• Input return loss              8dB (typ.)*1
• Output return loss           10dB (typ.)*1
*1: Measured by the circuit of "measurement circuit example".
       (fin = 878MHz)
*2: Measured by the circuit of "measurement circuit example".
      (IF = 90MHz)
• 16-pin Plastic Shrink Small Outline Package (Suffix: -PFV)


Pinout

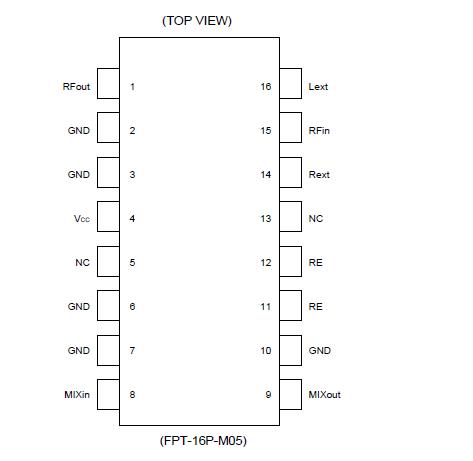

Connection Diagram


Specifications

Parameter Symbol Value Unit
Supply Voltage VCC 0.5 to 7.0 V
Output Voltage VO 0.5 to VCC + 0.5 V
Output Current IO 0 to 10 mA
Storage Temperature TSTG -55 to +125 °C
Note: Permanent device damage may occur if the above Absolute Maximum Ratings are exceeded. Functional
          operation should be restricted to the conditions as detailed in the operational sections of this data sheet.
          Exposure to absolute maximum rating conditions for extended periods may affect device reliability.


Description

The Fujitsu MB54501 includes a low-noise amplifier and a mixer, which are used for front end of mobile telecommunication systems.
Using Fujitsu's advanced technology, MB54501 achieves an Icc of 6.0mA (typ.).
