Features:

• Supply voltage 3V (typ.)
• Current consumption 2mA (typ.)
• Input frequency 1.1GHz (max.)
• Gain 14dB (typ.)*1
• Noise figure 2.2dB (typ.)*1
• 1dB compression point 6dBm (typ.)*1
• Frequency tolerance 2.5dB (typ.)*1
• Input return loss 8dB (typ.)*1
• Output return loss 8dB (typ.)*1
*1: Measured by the circuit of "measurement circuit example".
    (fin = 820MHz)
• 16-pin Plastic Shrink Small Outline Package (Suffix: -PFV)


Pinout

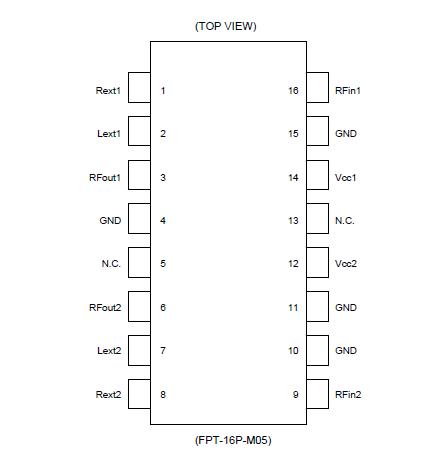

Connection Diagram


Specifications


Parameters Symbol Value Unit
Supply Voltage VCC 0.5 to 7.0 V
Output Voltage VO 0.5 to VCC + 0.5 V
Output Current IO 0 to 10 mA
Storage Temperature TSTG -55 to +125 °C
Note: Permanent device damage may occur if the above Absolute Maximum Ratings are exceeded. Functional
          operation should be restricted to the conditions as detailed in the operational sections of this data sheet.
          Exposure to absolute maximum rating conditions for extended periods may affect device reliability.


Description

The Fujitsu MB54502 includes two independent amplifiers which are used for mobile telecommunication applications such as handy phones and car phones. Both of the amplifiers achieve low current consumption as well as the low noise performance. Using Fujitsu's advanced technology, MB54502 achieves an Icc of 2mA typ. respectively (total 4mA typ.).
