Product Details

Description

Features:

• High speed parallel latches
• Live insertion/extraction permitted
• Extra data width for wide address/data paths or buses carrying parity
• Power-up 3-State
• Power-up reset
• Ideal where high speed, light loading, or increased fan-in are required with MOS microprocessors
• Output capability: +64mA/32mA
• Latch-up protection exceeds 500mA per Jedec JC40.2 Std 17
• ESD protection exceeds 2000V per MIL STD 883 Method 3015 and 200V per Machine Model

Pinout

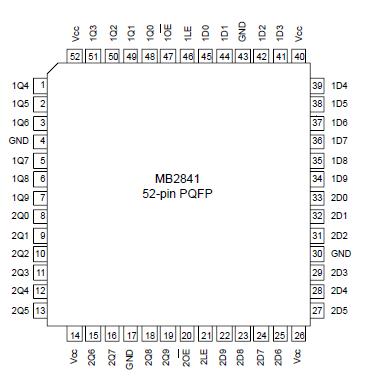

Connection Diagram

Specifications

SYMBOL	PARAMETER	CONDITIONS	RATING	UNIT
V_CC	DC supply voltage		0.5 to +7.0	V
I_IK	DC input diode current	V_I< 0	18	mA
V_I	DC input voltage3		1.2 to +7.0	V
I_OK	DC output diode current	V_O< 0	50	mA
V_OUT	DC output voltage3	output in Off or High state	0.5 to +5.5	V
I_OUT	DC output current	output in Low state	128	mA
T_stg	Storage temperature range		65 to 150	°C

NOTES:
1. Stresses beyond those listed may cause permanent damage to the device. These are stress ratings only and functional operation of the
device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to
absolute-maximum-rated conditions for extended periods may affect device reliability.
2. The performance capability of a high-performance integrated circuit in conjunction with its thermal environment can create junction
temperatures which are detrimental to reliability. The maximum junction temperature of this integrated circuit should not exceed 150°C.
3. The input and output voltage ratings may be exceeded if the input and output current ratings are observed.

Description

The MB2841 Bus interface register is designed to provide extra data width for wider data/address paths of buses carrying parity.

The MB2841 consists of two sets of ten D-type latches with 3-State outputs. The flip-flops appear transparent to the data when Latch Enable (nLE) is High. This allows asynchronous operation, as the output transition follows the data in transition. On the nLE High-to-Low transition, the data that meets the setup and hold time is latched.

Data appears on the bus when the Output Enable (nOE) is Low. When nOE of MB2841 is High the output is in the High-impedance state.
