MB2823

Features:

• Two sets of high speed parallel registers with positive edge-triggered D-type flip-flops
• Ideal where high speed, light loading, or
   increased fanin are required with MOS
   microprocessors
• Live insertation/extraction permitted
• Power-up 3-State
• Power-up Reset
• Output capability: +64mA/32mA
• Latch-up protection exceeds 500mA per
   Jedec JC40.2 Std 17
• ESD protection exceeds 2000 V per MIL
  STD 883 Method 3015 and 200 V per
  Machine Model

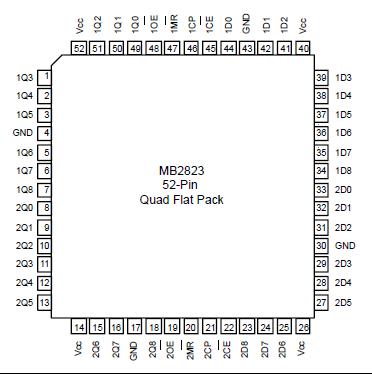

Pinout




Specifications

SYMBOL	PARAMETER	CONDITIONS	RATING	UNIT
VCC	DC supply voltage		0.5 to +7.0	V
IIK	DC input diode current	VI < 0	18	mA
VI	DC input voltage3		1.2 to +7.0	V
IOK	DC output diode current	VO < 0	50	mA
VOUT	DC output voltage3	output in Off or High state	0.5 to +5.5	V
IOUT	DC output current	output in Low state	128	mA
Tstg	Storage temperature range		65 to 150	°C

NOTES:
1. Stresses beyond those listed may cause permanent damage to the device. These are stress ratings only and functional operation of the
device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to
absolute-maximum-rated conditions for extended periods may affect device reliability.
2. The performance capability of a high-performance integrated circuit in conjunction with its thermal environment can create junction
temperatures which are detrimental to reliability. The maximum junction temperature of this integrated circuit should not exceed 150°C.
3. The input and output voltage ratings may be exceeded if the input and output current ratings are observed.


Description

The MB2823 dual bus interface register is designed to eliminate the extra packages required to buffer existing registers and provide extra data width for wider data/address paths of buses carrying parity.

The MB2823 has two 9-bit wide buffered registers with Clock Enable (nCE) and Master Reset (nMR) which are ideal for parity bus interfacing in high microprogrammed systems.

The registers of MB2823 are fully edge-triggered. The state of each D input, one setup time before the Low-to-High clock transition is transferred to the corresponding flipflop's Q output.
