MAAP-007899

Features: • Ideal for 802.11a MESH and Access Point, 5.8 GHz WiMax, and other Linear Applications• Linear Pout: 20 dBm (802.11a Signal, 3% EVM)• IP1dB: +28 dBm Typical• Small Signal Gain: 23 dB Typical• EVM: 3% at 20 dBm Linear (OFDM) POUT• Lead-Free 4 mm 16 lea...

product image

MAAP-007899 Picture
See larger image
SeekIC No. : 004408048 Detail

MAAP-007899: Features: • Ideal for 802.11a MESH and Access Point, 5.8 GHz WiMax, and other Linear Applications• Linear Pout: 20 dBm (802.11a Signal, 3% EVM)• IP1dB: +28 dBm Typical• Small...

MAAP-007899 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MAAP-007899
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Ideal for 802.11a MESH and Access Point, 5.8
  GHz WiMax, and other Linear Applications
• Linear Pout: 20 dBm (802.11a Signal, 3% EVM)
• IP1dB: +28 dBm Typical
• Small Signal Gain: 23 dB Typical
• EVM: 3% at 20 dBm Linear (OFDM) POUT
• Lead-Free 4 mm 16 lead PQFN Package
• 100% Matte Tin Plating over Copper
• Halogen-Free "Green" Mold Compound
• RoHS* Compliant and 260°C Reflow Compatible

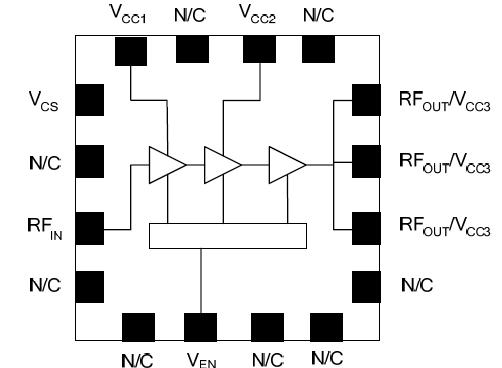

Pinout

Connection Diagram


Specifications

Input Power ..............................................................+ 5 dBm
Operating Supply Voltage ......................................+6.0 Volts
Operating Control Voltage..................................... +5.5 Volts
Operating Temperature ..............................-40 °C to +85 °C
Channel Temperature ..............................................+150 °C
Storage Temperature............................... -40 °C to +150 °C
4. Exceeding any one or combination of these limits may cause
permanent damage to this device.
5. M/A-COM does not recommend sustained operation near
these survivability limits.


Description

M/A-COM's MAAP-007899 RF power amplifier is a three stage GaAs MMIC designed specifically for 5.7-5.9 GHz WiMax 802.16 and 802.11a applications.

The power amplifier maintains high linearity under OFDM modulation. The MAAP-007899 is fabricated using a high reliability GaAs HBT process to realize low current and high power functionality. The process features full passivation for increased performance and reliability.
