Features:

· 2 Watt Saturated Output Power Level
· Variable Drain Voltage (6-10V) Operation
· MSAG™ Process
· 5x5 mm 20 Lead PQFN Package


Pinout

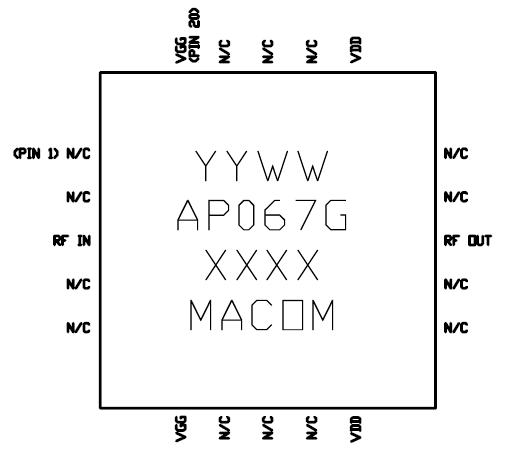

Connection Diagram


Specifications

Characteristic Symbol Absolute Maximum Unit
Input Power PIN 17 dBm
Drain Supply Voltage VDD 12.0 V
Gate Supply Voltage VGG -3.0 V
Quiescent Drain Current (No RF) IDQ 1.02 A
Quiescent DC Power Dissipated (No RF) PDISS 10.2 W
Junction Temperature TJ 170 °C
Storage Temperature TSTG -55 to +150 °C



Description

The MAAP-000067-PKG0003 is a 3-stage 2 W power amplifier with on-chip bias networks in a 20 lead MLP package, allowing easy assembly. This product is fully matched to 50 ohms on both the input and output. It can be used as a power amplifier stage or as a driver stage in high power applications.

Each device MAAP-000067-PKG0003 is 100% RF tested to ensure performance compliance. The part is fabricated using M/A-COM's GaAs Multifunction Self-Aligned Gate (MSAG™) Process.
