Features:

`High Speed Scan (MAX. 2 ms/line, TYP. 5 ms/line)
`A3 (8 pixels/mm) Line Sensor Attachment
`Image sensor (CCD,CIS) control signal generation
   CCD: SH, CK1, CK2, RS
   Contact sensor (CIS): SH, CK1 (or CK2)0Analog signal processing circuit control signal generation
   CLAMP, S/H, AGC, DSCH
`Built-in 5-bit Flash Type A-D Converter
`Bi-level data external input/output interface Serial output(M66330)
   8-bit MPU bus output with external DMA control signal
`Image data processing
   r correction
   Uniformity correction (block correction in units of 8 pixels)
   MTF compensation (1 dimension)
   Detector of background and object level (programmable)
   Dithering control
  1. Dither method (16 levels using 4 * 4 matrix)
      Separation of image data area (1 dimension)
      Scale down A3 B4, A3 A4, B4 A4
`5V Single Power Supply


Application

Facsimiles


Pinout

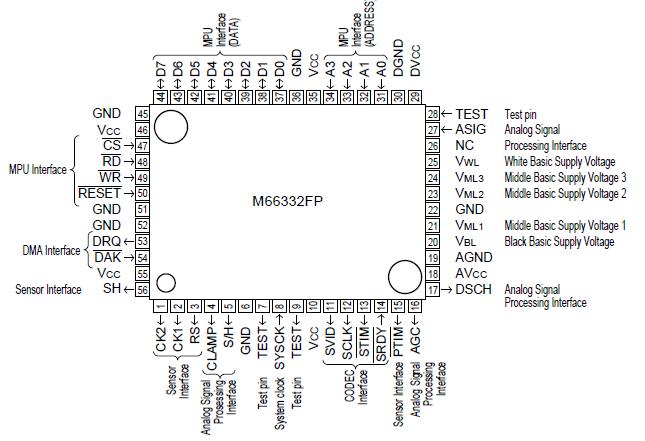

Connection Diagram


Description

The M66332 is a facsimile image processing controller that converts analog signals that are photoelectrically converted by an image sensor into bi-level signals.

M66332 has image processing functions such as peak detection,uniformity correction, g correction, MTF compensation, detector of background and object levels, dither control, separation of image data area, scale down, and area specification.

This controller has a built-in 5-bit flash type A-D converter and interface circuits to image sensor, analog signal processing circuit, and CODEC (Coder & Decoder) to simplify control of the readout mechanism.
