Features:

• 16-bit MPU bus compatible
• Writing data via DMAC is possible
• 320-word (5,120-bit) static RAM
• Data output rate of up to 10Mbps
• Built-in function to add fixed data of a specified length at the beginning of output data (Fixed data: Continuous High bit or Low bit data)
• The output format can be selected between FIFO or LIFO.
• The output method can be selected from two:
   (1) Synchronized with an arbitrary continuous clock (IN) on the system side; the frequency of clock output (CLK/OUT) can be divided by 1, 2, 4, 8, or 16.
   (2) Synchronized with the data request clock (CLK IN) on the peripheral equipment side.
• Up to two devices can be cascaded.
   (1) Toggle configuration
   (2) 32-bit bus configuration
• High fan-out outputs (CLK/OUT, DATA OUT).
   Io=±24mA
   (±4mA for INTR and DREQ
     ±8mA for BUSY/ORDY)




Application

Image-handling general OA equipment


Pinout

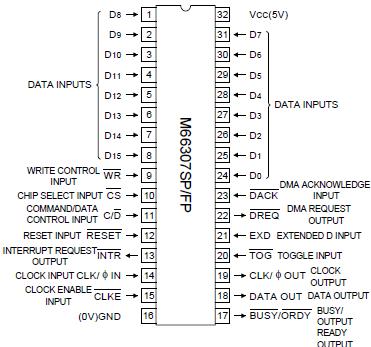

  Connection Diagram


Specifications

Symbol
Parameter
Condition
Rating
Unit
Vcc Supply voltage
0.3to+7.0
V
VI Input voltage
-0.3toVcc+0.3
V
Vo Output voltage
0toVcc
V
Pd Power dissipation Ta=25°C
700
mW
Tstg Storage temperature
-65to+150
°C



Description

The M66307SP/FP is an integrated circuit consisting of a line buffer with static memory, manufactured by the silicon gate CMOS process,which satisfies A3-paper 400DPI requirements. It converts the stored data from the 16-bit MPU bus into serial data and outputs it at a transfer rate of up to 10Mbps synchronously with the external data request clock or an arbitrary continuous clock.
