Features:

• 5,120  × 1bit serial input-serial output line buffer memories
• Data transmission at 10 megabits/second maximum
• Two line buffer memories can be alternated by external toggle signal.
• Memory capacity can be doubled by cascade connection.
• Because of cascade input pin (CAS1), output potential after completion of output can be set to either H or L.
• Low noise and high fan-out output (IO = ±24mA guaranteed)
• Every input pin has built-in Schmidt trigger circuit.
• Read counter and write counter can be reset independently.
• RESET, T, CNTRST1and CNTRST2are equipped with negative noise reduction circuit.




Application

Data buffer between industrial or home-use image data processing system and peripheral equipment


Pinout

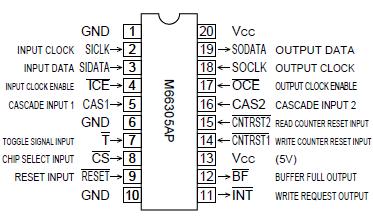

  Connection Diagram


Specifications

Symbol
Parameter
Conditions
Ratings
Unit
Vcc Supply voltage
-0.5to +7.0
V
VI Input voltage
-0.5 to VCC+0.5
V
Vo Output voltage
-0.5 to VCC+0.5
V
Pd Power dissipation
mounted
700
mW
Tstg Storage temperature
-65 to +150
°C



Description

M66305A Toggle Line Buffer has two 5,120-bit line buffer memories. It takes in serial data that arrives synchronously
with clock pulses and outputs it in serial at a rate of up to 10 Mbits per second synchronously with external clock pulses.

This buffer employs the double buffer system: While data is being output, data on the next line can be written on the other line buffer memory.
