M65677FP

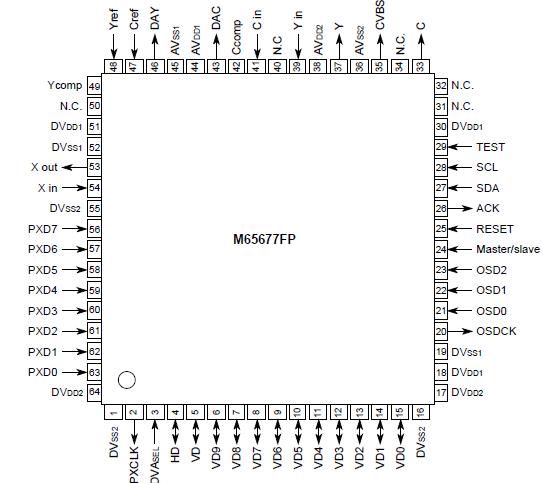

• Macrovision's video anti copy process
   Rev 7.01 supported (Note1)
• Overlay CGMS signal on line 20/283 for 525/60 (Note3)
• Generate CRCC for CGMS Signal
• Overlay WSS signal on line 23 for 625/50 (Note4)
• Color adjustment (TINT/color control)
• NTSC, B/G PAL or MPAL Video Outputs
• Component Y/C Video (S-Video) and CVBS or Y/U/V Outputs
• Supporting CCIR601 and CCIR656 format data
• Closed Caption Manager on line 21/284 for NTSC
• Generate ODD parity for Closed Caption Manager
• H/V Sync and Composite generating
• Overlay Digital OSD Supporting Y/Cb/Cr 4:4:4
• Over sampling Filter
• 2ch 10bit DAC and 3ch 6dB Amp (Note2)
• 3.3V I/O interface
• I²C Bus Interface for Controls
• Power down mode
Note
     (Note1): This device is protected by U.S. patent numbers 4631603,4577216 and 4819098 and other intellectual property rights. The use of Macrovision Corporation's copy protection technology in the device must be authorized by
Macrovision and is intended for home and other limited pay-par-view uses only, unless otherwise authorized in writing by Macrovision. Reverse engineering or disassembly is prohibited.
    (Note2): 6dB Amp max. output is 1.0VP-P.
    (Note3): Copy Generation Management System-A (IEC1880)
    (Note4): Wide Screen Signaling (ETS300 294)

The M65677FP encodes CCIR601 or CCIR656 format Y/Cb/Cr data into analog NTSC and PAL video signals, including Digital Signal Processing functions such as Closed Caption encoding, Overlay OSD, Anti Video Copy Processing (Note1) e.t.c. It also includes peripheral processing function such as 10bit DAC e.t.c., so that low cost and compact system can be realized.
