Features: • NTSC and B/G-PAL Outputs
• Component Y/C (S-Video), Composite (CVBS) or Y*4/U/V Outputs
• Supporting CCIR601, CCIR656 (SMPTE125M) Format Data
• Processing Y/Cb/Cr and Y/U/V Pixel Data
• 27MHz Clock Frequency (Two-times Oversampling)
• Macrovision Copy Protection*3 Processing (Revision 7.01)
• Close Captioning Supporting (line 21/NTSC) (ODD Parity Operation)
• V-Code Supporting (line 21/NTSC) (ODD Parity Operation)
• CGMS*1 Data Insertion (line 20/NTSC) (CRCC Error Correction Code Operation)
• WSS*2 Supporting (line23/PAL)
• OSD Insertion Interface and 3¥8¥4-bit Color Look-up Table
• Controllable Picture Processing Functions Color, TINT and Brightness
• Built-in Analog Functions
Y/C Mixing
Two 10-bit DACs
Three 6-dB Amplifiers
• Built-in 27 MHz System Clock Generator
• Single 3.3V Supply
• 64-pin PQFP Package
Note
*1: Copy Generation Management System-A (IEC1880)
*2: Wide Screen Signaling (ETS300 294)
*3: This applies to M65675FP only.
This device is protected by U.S. patent number 4631603,4577216 and 4819098 and other intellectual property rights.
The use of Macrovision's copy protection technology in the device must be authorized by Macrovision and is intend for home and other limited pay-par-view use only, unless otherwise authorized in writing by Macrovision. Reverse engineering or disassembly is prohibited.
*4: Y output is 10bit digital signal.
ApplicationDVD Players, Digital Satellite & Cable System (Set Top Boxes/IRDs), Video CD, Multimedia Terminals, Video Games, Digital VCR & Camcoder etc.

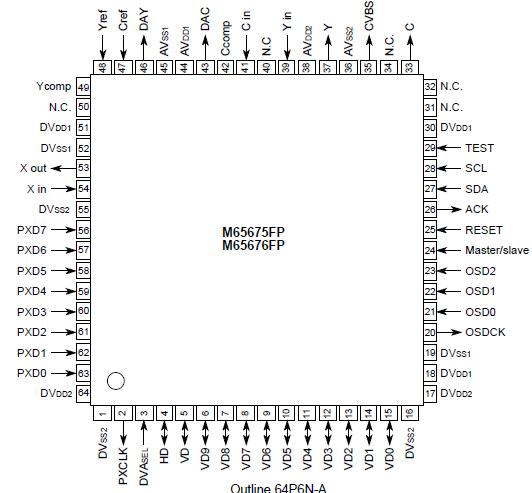

Pinout
Specifications
|
Symbol |
Parameter |
Limits |
Unit |
|
Min. |
Typ. |
Max. |
|
VDD |
DC supply voltage |
-0.3 |
|
4.5 |
V |
|
VI |
Digital input voltage |
-0.3 |
|
VDD+0.3 |
V |
|
VO |
Digital output voltage |
-0.3 |
|
VDD+0.3 |
V |
|
Ta |
Operating temperature |
-20 |
+25 |
+75 |
|
|
Tstg |
Storage temperature |
-40 |
|
+125 |
|
DescriptionThe M65675FP/M65676FP is a NTSC/PAL encoder LSI that converts CCIR 601 or CCIR 656 (SMPTE125M) format digital video signals into analog component and composite video signals in accordance with either NTSC or B/G-PAL standards.
The 10-bit digital luma (Y) and analog chroma (U/V) signals are available in Y/U/V output mode.
In addition M65675FP performs the closed caption capability (TV line 21/NTSC), CGMS*1 encoding (TV line 20/NTSC), WSS*2 encoding (TV line 23/PAL), Macrovision copy protection*3 function (Rev. 7.01) and on-screen display. The OSD function can be directly accessed by the OSD microprocessor via built-in interface.
M65675FP Data Sheet
