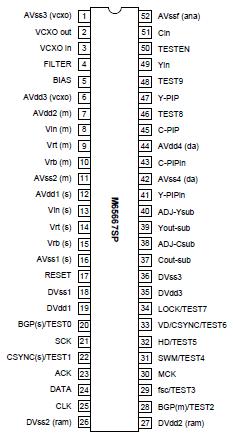

M65667SP

• Built-in 96k-bit field memory (sub-picture data storage)
• Internal V-chip data slicer (for sub-picture)
• Pin compatible with M65617SP
• Vertical filter for sub-picture (Y signal )
• Single sub-picture (selectable picture size : 1/9 , 1/16)
• Sub-picture processing sepecification (1/9 size / 1/16 size) :
   Quantization bits Y, B-Y, R-Y : 6bits
   Horizontal sampling 171 pixels (Y) , 28.5 pixels (B-Y, R-Y)
   Vertical lines 69/ 52 lines
• Frame (sub-picture) on/off
• Built-in analog circuits :
   Two 8-bit A/D converters (main and sub-picture signals)
   Two 8-bit D/A converters (Y and C sub-picture signals)
   Sync-tip-clump, VCXO, Analog switch ... etc.
• I²C BUS control (parallel/serial control) :
   PIP on/off , Sub-picture size(1/9 or 1/16), Frame on/off
  (programmable luma level), PIP position (4 corners fixed   position), Picture freeze , Y delay adjustment, Chroma level, Tint,  Black level, Contrast ... etc.

The M65667SP is a NTSC PIP (Picture in Picture) signal processing LSI, whose sub and main-picture inputs are composite and Y/C separated signals, respectively. The built-in field memory (96k-bit RAM) ,V-chip data slicer and analog circuitries lead the PIP system low cost and small size.
