M65665SP

Features: * Internal V-chip data slicer (f or sub-picture)* Vertical f ilter f or sub-picture ( Y signal )* Base band comb f ilter (2 Line)* Single sub-picture ( selectable picture size : 1/9 , 1/16 )* Sub-picture processing specif ication ( 1/9 , 1/16 size) : Quantization bits Y, B-Y, R-Y : 7 bit...

product image

M65665SP Picture
See larger image
SeekIC No. : 004406812 Detail

M65665SP: Features: * Internal V-chip data slicer (f or sub-picture)* Vertical f ilter f or sub-picture ( Y signal )* Base band comb f ilter (2 Line)* Single sub-picture ( selectable picture size : 1/9 , 1/16...

M65665SP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M65665SP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* Internal V-chip data slicer (f or sub-picture)
* Vertical f ilter f or sub-picture ( Y signal )
* Base band comb f ilter (2 Line)
* Single sub-picture ( selectable picture size : 1/9 , 1/16 )
* Sub-picture processing specif ication ( 1/9 , 1/16 size) :
   Quantization bits Y, B-Y, R-Y : 7 bits
   Horizontal sampling 229 pixels (Y), 57 pixels (B-Y, R-Y)
   Vertical lines 69/ 52 lines
* Frame ( sub-picture ) on/of f
* Built-in analog circuits :
   Two 8-bit A/D converter (f or sub-picture signal)
   Three 8-bit D/A conv erters (f or Y, U and V of sub-picture)
   Sy nc-tip-clamp, VCXO,OSD switch ... etc..
* IIC BUS control ( parallel/serial control) :
   PIP on/of f , Frame on/of f ( programmable luma lev el),
   Sub-picture size ( 1/9, 1/16 ),
   PIP position ( f ree position ), Picture f reeze ,Y delay adjustment, Chroma lev el, Tint, Black lev el,Contrast ...etc..


Application

NTSC, PAL-M, PAL-N color TV


Pinout

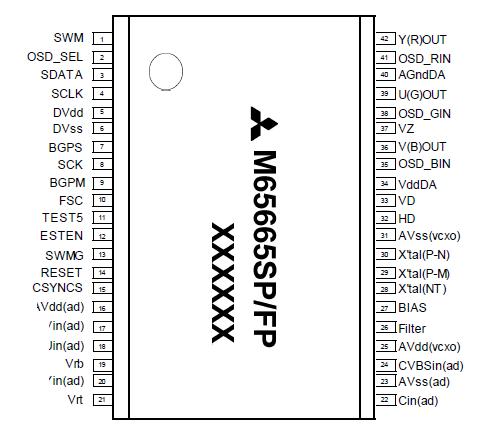

Connection Diagram


Specifications

Symbol
Parameter
Limits
Unit
Min.
Max.
VDD3 Supply voltage (3.3V)
-0.3
4.2
V
VI Input voltage(except 5V input)
-0.3
VDD3+0.3
V
VI Input voltage(5V input)
-0.3
5.25
V
Vo Output voltage
-0.3
VDD3+0.3
V
Io Output current (*1)
IOH=-4
IOL=4
mA
Pd Power dissipation
-
1200
mW
Topr Operating temperature
-10
70
deg.
Tstg Storage temperature
-50
125
deg.



Description

The M65665SP/FP is a PIP (Picture in Picture) signal processing LSI, whose sub-picture input is composite signal or component signals(Y/C or Y/U/V) f or NTSC,PAL-M, and PAL-N. The built-in f ield memory (168k-bit RAM) , V-chip data slicer and analog circuitries lead the high quality PIP sy stem low cost and small size.
