M5M4V64S40ATP-10

Features: - Single 3.3v±0.3v power supply- Fully synchronous operation referenced to clock rising edge- 4 bank operation controlled by BA0, BA1 (Bank Address)- /CAS latency- 2/3 (programmable)- Burst length- 1/2/4/8/Full Page (programmable)- Burst type- sequential / interleave (programmable)- Colu...

product image

M5M4V64S40ATP-10 Picture
See larger image
SeekIC No. : 004406242 Detail

M5M4V64S40ATP-10: Features: - Single 3.3v±0.3v power supply- Fully synchronous operation referenced to clock rising edge- 4 bank operation controlled by BA0, BA1 (Bank Address)- /CAS latency- 2/3 (programmable)- Burs...

M5M4V64S40ATP-10 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M5M4V64S40ATP-10
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

- Single 3.3v±0.3v power supply
- Fully synchronous operation referenced to clock rising edge
- 4 bank operation controlled by BA0, BA1 (Bank Address)
- /CAS latency- 2/3 (programmable)
- Burst length- 1/2/4/8/Full Page (programmable)
- Burst type- sequential / interleave (programmable)
- Column access - random
- Burst Write / Single Write (programmable)
- Auto refresh and Self refresh
- 4096 refresh cycles /64ms
- Column address A0-A7
- LVTTL Interface
- 400-mil, 54-pin Thin Small Outline Package (TSOP II) with 0.8mm lead pitch
- Clock frequency 125MHz /100MHz
- Auto precharge / All bank precharge controlled by A10


Pinout

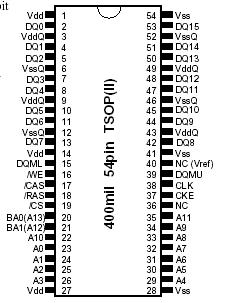

Connection Diagram


Specifications

Symbol Parameter Conditions Ratings Unit
Vdd Supply Voltage with respect to Vss -0.5 ~ 4.6 V
VddQ Supply Voltage for Output with respect to VssQ -0.5 ~ 4.6 V
VI Input Voltage with respect to Vss -0.5 ~ Vdd+0.5 V
VO Output Voltage with respect to VssQ -0.5 ~ VddQ+0.5 V
IO Output Current   50 mA
Pd Power Dissipation Ta = 25 °C 1000 mW
Topr Operating Temperature   0 ~ 70 °C
Tstg Storage Temperature   -65 ~ 150 °C



Description

The M5M4V64S40ATP is a 4-bank x 1048576-word x 16-bit Synchronous DRAM, with LVTTL interface. All inputs and outputs are referenced to the rising edge of CLK. The M5M4V64S40ATP achieves very high speed data rate up to 125MHz, and is suitable for main memory or graphic memory in computer systems.
