M5M4V4S40CTP-12

Features: - Single 3.3v±0.3v power supply- Clock frequency 83MHz / 67MHz- Fully synchronous operation referenced to clock rising edge- Dual bank operation controlled by BA(Bank Address)- /CAS latency- 1/2/3 (programmable)- Burst length- 1/2/4/8/FP (programmable)- Sequential and interleave burst (p...

product image

M5M4V4S40CTP-12 Picture
See larger image
SeekIC No. : 004406228 Detail

M5M4V4S40CTP-12: Features: - Single 3.3v±0.3v power supply- Clock frequency 83MHz / 67MHz- Fully synchronous operation referenced to clock rising edge- Dual bank operation controlled by BA(Bank Address)- /CAS latenc...

M5M4V4S40CTP-12 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M5M4V4S40CTP-12
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

- Single 3.3v±0.3v power supply
- Clock frequency 83MHz / 67MHz
- Fully synchronous operation referenced to clock rising edge
- Dual bank operation controlled by BA(Bank Address)
- /CAS latency- 1/2/3 (programmable)
- Burst length- 1/2/4/8/FP (programmable)
- Sequential and interleave burst (programmable)
- Byte control by DQMU and DQML
- Random column access
- Auto precharge / All bank precharge controlled by A8
- Auto and self refresh
- 1024 refresh cycles /16.4ms
- LVTTL Interface
- 400-mil, 50-pin Thin Small Outline Package (TSOP II) with 0.8mm lead pitch

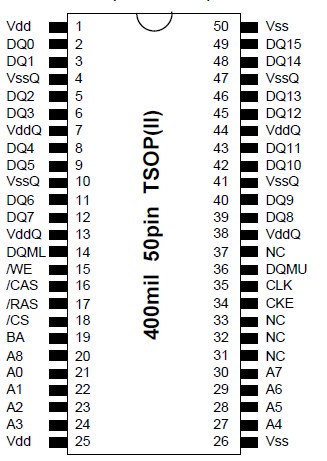

Pinout

Connection Diagram


Specifications

Symbol

Parameter

Conditions

Ratings

Units

Vdd

Supply Voltage

with respect to Vss

-0.5 ~ 4.6

V

VddQ

Supply Voltage for Output

with respect to VssQ

-0.5 ~ 4.6

V

VI

Input Voltage

with respect to Vss

-0.5 ~ 5.5

V

VO

Output Voltage

with respect to VssQ

-0.5 ~ 4.6

V

IO

Output Current



50

mA

Pd

Power Dissipation

Ta = 25 °C

1000

mW

Topr

Operating Temperature



0 ~ 70

°C

Tstg

Storage Temperature



-65 ~ 150

°C




Description

The M5M4V4S40CTP is a 2-bank x 131,072-word x 16-bit Synchronous DRAM, with LVTTL interface. All inputs and outputs are referenced to the rising edge of CLK. The M5M4V4S40CTP achieves very high speed data rates up to 83MHz, and is suitable for main memory or graphic memory in computer systems.
