M5M44405CJ

Features: `Standard 26 pin SOJ, 26 pin TSOP(II)`Single 5V±10%supply`Low stand-by power dissipation CMOS lnput level 5.5mW (Max) * CMOS lnput level 550W (Max)`Low operating power dissipation M5M44405Cxx-5,-5S 687.5mW (Max) M5M44405Cxx-6,-6S 550.0mW (Max) M5M44405Cxx-7,-7S 467.5mW (Max)`Self refresh...

product image

M5M44405CJ Picture
See larger image
SeekIC No. : 004406189 Detail

M5M44405CJ: Features: `Standard 26 pin SOJ, 26 pin TSOP(II)`Single 5V±10%supply`Low stand-by power dissipation CMOS lnput level 5.5mW (Max) * CMOS lnput level 550W (Max)`Low operating power dissipation M5M44405...

M5M44405CJ Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M5M44405CJ
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Standard 26 pin SOJ, 26 pin TSOP(II)
`Single 5V±10%supply
`Low stand-by power dissipation
          CMOS lnput level 5.5mW (Max) *
          CMOS lnput level 550W (Max)
`Low operating power dissipation
          M5M44405Cxx-5,-5S 687.5mW (Max)
          M5M44405Cxx-6,-6S 550.0mW (Max)
          M5M44405Cxx-7,-7S 467.5mW (Max)
`Self refresh capabiility *
          Self refresh current 120A(max)
`Extended refresh capability *
          Extended refresh current 120A(max)
`Hyper-page mode (1024-bit random access), Read-modify- write,RAS-only refresh CASbefore RASrefresh, Hidden refresh, CBR self refresh(-5S,-6S,-7S) capabilities
`Early-write mode and OE and W to control output buffer impedance
`All inputs, output TTL compatible and low capacitance
`1024 refresh cycles every 16.4ms (A0~A9)
`1024refresh cycle every 128ms (A0~A9) *
`4-bit parallel test mode capability
* : Applicable to self refresh version (M5M44405CJ,TP-5S,-6S,-7S
      : option) only

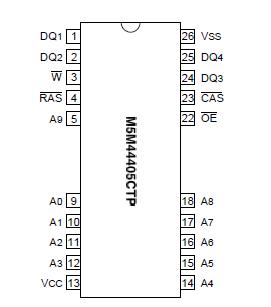

Pinout

Connection Diagram


Specifications

Symbol
Parameter
Conditions
Rating
Unit
Vcc Supply voltage
 With respect to Vss
-1~7
V
VI Input voltage
-1~7
V
Vo Output voltage
-1~7
V
Io Output current
50
mA
Pd Power dissipation T=25°C
1000
mW
Topr Operating temperature
0~70
°C
Tstg Storage temperature
-65~150
°C



Description

M5M44405CJ is a family of 1048576-word by 4-bit dynamic RAMs, fabricated with the high performance CMOS process,and is ideal for largecapacity memory systems where high speed, low power dissipation,and low costs are essential.

The use of quadruple-layer polysilicon process combined with silicide technology and a single-transistor dynamic storage stacked capacitor cell provide high circuit density at reduced costs.Multiplexed address inputs permit both a reduction in pins and an increase in system densities.

Self or extended refresh current is low enough for battery back-up application.
