Features:

`Low saturation voltage.
`3.3V DSP available.
`There are two motor power supplies.
Vm1 CH1,2 motor power supply-1
Vm2 CH3,4,5 motor power supply-2
`Built-in OP amp. for Regulator.(It enables a Regulator which consists of external PNP Tr.s and resistors.)
`Flexible Input amp. setting.(It enables PWM control.)
`Low cross-over distortion.(4.5V13.2V)
`Wide supply voltage range.(4.5V13.2V)
`Built-in Thermal Shut Down circuit.
`Built-in Mute circuit.(two systems) MUTE1:CH14, MUTE2:CH5

Application

MD, CD-audio, CD-ROM, VCD,DVD etc.

Pinout

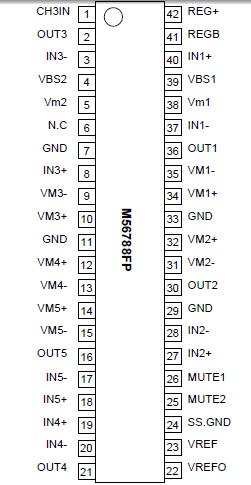

Connection Diagram

Specifications

Symbol	Parameter	Conditions	Ratings	Unit
Vbs	Supply voltage	VBS power supply	15	V
Vm	Supply voltage	Vm power supply	15	V
Io	Output Current		500	mA
Vin	Maximum Input Voltage of each Terminals	23,25,26,27,28,37,40pin	0-VBS1	V
Vin	Maximum Input Voltage of each Terminals	1,3,8,17,18,19,20,42pin	0-VBS2	V
Pt	Power Dissipation	Free Air	1.2	W
K	Thermal Derating	Free Air	9.6	mW/°C
Tj	Junction Temperature		150	°C
Topr	Operating Temperature Range		-10to75
Tstg	Storage Temperature Range		-40to125

Description

The M56788FP is a semiconductor integrated circuit in order 5ch actuator.
