Features:

·The supply voltage with wide range.(4.5V to 13.2V)
·High motor drive current (1.0A).
·Motor current control for the both motor rotation is possible.

Application

CD-ROM

Pinout

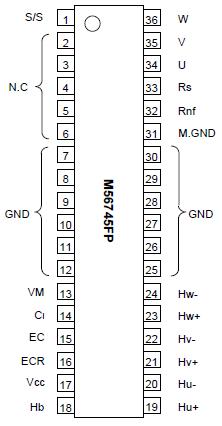

Connection Diagram

Specifications

Symbol	Parameter	Conditions	Rating	Unit
VM	Motor supply voltage	13pin maximum input voltage	14	V
Vcc	5V supply voltage	17pin maximum input voltage	7.0	V
Io	Output current	38pin	1.0	A
VH(c)	Sensor amp. Differential input range		4.5	V
Pt	Power dissipation	19to24pins	1.2	W
K	Thermal derating	Free Air	9.6	mW/°C
Tj	Junction temperature	Free Air	150
Topr	Operating temperature		-20to+75
Tstg	Storage temperature		-40to+125

Description

The M56745FP is a semiconductor integrated circuit designed for a single chip controller for CD-ROM spindle motor.

M56745FP has a both (forward and reverse) motor rotation control by the motor speed control terminal.

Also, this device includes a bias circuit for Hall Sensor, a current limit circuit and a thermal shut down function.
