Product Details

Description

Features:

·Provided with digital servo enabling high precision, high stability and non-adjustment.
·3-speed switching function with a pin .................................. MOD
·Enable two systems .......................................................... EN•EN
·Io (peak)=1.0A
·Low capacitance of dumping capacitor

Application

FDD spindle motor (5")

Pinout

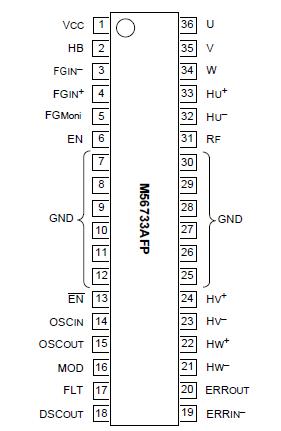

Connection Diagram

Specifications

Symbol	Parameter	Conditions	Ratings	Unit
Vcc	Supply voltage		15	V
Io	Output current		1.0	A
V_HD	Hole amplifier, differential input voltage	Between 21 and 22, between 23 and 24, between 32 and 33 (pin number)	5	V
V_IN	Apply voltage at pin	6,13,21 24,32,33 (pin number)	0-Vcc	V
f_IN	Clock frequency		1000	kHZ
Pt	Power dissipation	Use of infinite heat sink	4.5	W
K	Thermal derating	Use of infinite heat sink	27.8	°C/W
Tj	Temperature at junction		150
Topr	Operating temperature		-20to75
Tstg	Storage temperature		-40to125

Description

The M56733AFP is a semiconductor integrated circuit designed as a single chip controller for the FDD spindle motor. The IC is equipped with a power amplifier, hole amplifier, FG amplifier,oscillator, speed discriminator, and various types of protection circuits.

Equipped with MOD pin that enables 3-speed switching with a single pin, the M56733AFP is very convenient to make system compact.
