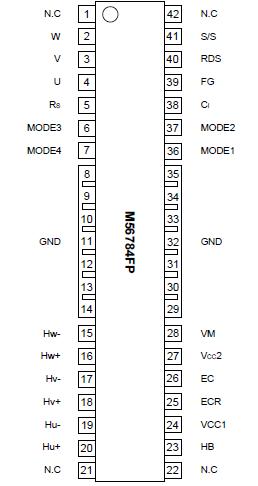

M56784FP

·Large power dissipation (Power Package).
· 3.3V DSP available.
·The supply voltage with wide range.
· High motor drive current.
· Low saturation voltage. (typical 1.2V at load current 500mA)
· Motor current control for both motor torque directions.
· Reverse torque mode select [SHORT BRAKING, etc].
· Sleep mode. (Zero total current)
·Hall amplifier sensitivity select.(Minimum voltage: 35mVp-p or 50mVp-p)
·FG signal output terminal.
· Automatic stop select. (Removable function)
·Reverse detected signal pin.
