Product Details

Description



Features:

`3.3V DSP available.
`Low saturation voltage.
`By taking advantage of the bootstrap function, the saturation voltage can be lower.
` There are two motor power supplies.
Vm12 CH1, 2 motor power supply-1
Vm3 CH3 motor power supply-2
`7V power-supply is possible (Vm12 = 12V and MGND12 = 5V)
`Flexible Input amplifier setting. (It enables PWM control.)
`CH1 and CH2 can act in the Current Control mode.
`Low cross-over distortion.
`Wide supply voltage range. (4.5V 13.2V)
`Including Thermal Shut Down circuit.
` Including 2 Operational Amplifiers.
`Including Mute circuit (2 lines).


Application

MD, CD-audio, CD-ROM, VCD, DVD etc.


Pinout

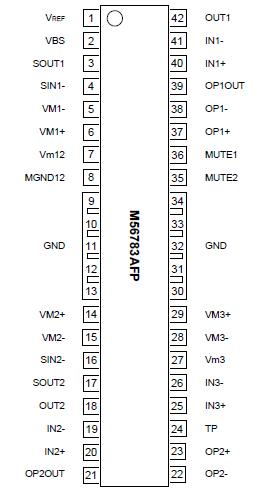

Connection Diagram


Specifications

Symbol
Parameter
Conditions
Rating
Unit
VBS Bootstrap power supply VBS power supply
15
V
Vm Motor power supply Vm power supply
15
V
Io12 1CH, 2CH Output Current Note2
1.0
A
Io3 3CH Output current
0.7
A
Vin Maximum input voltage of terminals 1,19,20,22,23,25,26,35,36,37,38,40,41pins
0-VBS
V
4,16pins
Vm12
V
Pt Power dissipation Free Air
1.2
W
K Thermal derating Free Air
9.6
mW/°C
Ti Junction temperature
150
Topr Operating temperature
-20to+75
Tstg Storage temperature
-40to+125
*Note2. The ICs must be operated within the Pt (power dissipation) or the area of safety operation.


Description

The M56783AFP is a semiconductor integrated circuit in order to drive 3ch actuator.
