M56753FP

Features: ·Low output saturation voltage (typ. 1.35V at 0.5A).·Wide operating supply voltage range (4.5 to 15V).·High current drive capability (maximum 0.9A).·Low crossover distortion.·High frequency capability.ApplicationDVD, DVD-ROM CD-ROM, CD PLAYERPinoutSpecifications Symbol Paramete...

product image

M56753FP Picture
See larger image
SeekIC No. : 004406015 Detail

M56753FP: Features: ·Low output saturation voltage (typ. 1.35V at 0.5A).·Wide operating supply voltage range (4.5 to 15V).·High current drive capability (maximum 0.9A).·Low crossover distortion.·High frequenc...

M56753FP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M56753FP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Low output saturation voltage (typ. 1.35V at 0.5A).
·Wide operating supply voltage range (4.5 to 15V).
·High current drive capability (maximum 0.9A).
·Low crossover distortion.
·High frequency capability.


Application

DVD, DVD-ROM CD-ROM, CD PLAYER


Pinout

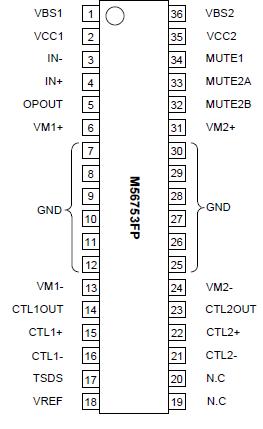

Connection Diagram


Specifications

Symbol
Parameter
 Conditions
Ratings
Unit
VBS Bootstrap Power Supply 1,36pins
15
V
Vcc Power Supply 2,35pins
15
V
IO Output Current VCC=VBS=12V
900
mA
Vin Maximum Input Voltage of each Terminals 3,4,15,16,18,21,22,32,33and34pins
0-Vcc
V
Pd Power Dissipation With infinite heatsink



4.5

W

K Thermal Derating With infinite heatsink
27.8
°C/W
Tj Junction Temperature
150
°C
Top Operating Temperature Range
-25to75
Tstg Storage Temperature Range
-40to150



Description

The M56753FP is a semiconductor IC developed as the motor driver used DVD, DVD-ROM, CD-ROM and CD Player.
This device include 2 channel BTL drivers and can drive 2 actuators with one IC at the same time.
Also, the mute circuit, thermal protection circuit and VREF voltage monitor circuit functions are included.
