M56750FP

Features: • Wide voltage range: From 12V to 24V.• High current capability : 1.0A• Inclusion of current limit circuit.• Inclusion of charge pump circuit.• Inclusion of Hall-sensors drive circuit.(This function is linked with a power save function.)• Inclusion of ...

product image

M56750FP Picture
See larger image
SeekIC No. : 004406014 Detail

M56750FP: Features: • Wide voltage range: From 12V to 24V.• High current capability : 1.0A• Inclusion of current limit circuit.• Inclusion of charge pump circuit.• Inclusion of H...

M56750FP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M56750FP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Wide voltage range: From 12V to 24V.
• High current capability : 1.0A
• Inclusion of current limit circuit.
• Inclusion of charge pump circuit.
• Inclusion of Hall-sensors drive circuit.
(This function is linked with a power save function.)
• Inclusion of power save function.
• Inclusion FG amplifier.
• Inclusion of Thermal Shut Down (TSD) circuit.


Application

Scanner motor of Laser Beam Printer.


Pinout

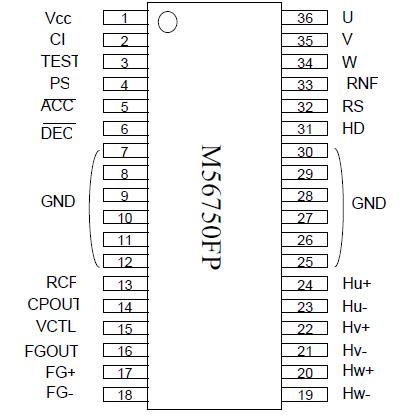

Connection Diagram


Specifications

Symbol
Parameter
 Condition
Limit
Unit
Vcc Power Supply
28
V
Io Output Current
1.0
mA
VHA1 Hall sensor Amp.
differential input range
4.5
V
Vi Input voltage of input terminal ACC , DEC , PS, VCTL terminals.
7.0
V
IHD Output current of HD terminal
20
mA
VHD Maximum input voltage of HD Under output Tr. OFF condition.
(Open collector output).
28
V
IFGout Output current of FGout terminal
5.0
mA
VFGout Maximum input voltage of FG
output.		 Under output Tr. OFF condition.
(Open collector output).
7.0
V
Pt Power Dissipation With infinite heatsink

4.5

W

K Thermal Derating With infinite heatsink
27.8
°C/W
Tj Junction Temperature
150
°C
Topr Operating Temperature Range
-25to75
Tstg Storage Temperature Range
-40to150



Description

M56750FP is a 3 phase brushless motor driver that include charge pump circuit, which is inputted a acceleration and
deceleration pulse signal from a external discriminator circuit. The pulse width is converted to the voltage by the above charge pump circuit and a external filter. And, the current in proportion to this voltage is outputted.
