M36L0R7050T0

Features: ` MULTI-CHIP PACKAGE 1 die of 128 Mbit (8Mb x16, Multiple Bank, Multi-level, Burst) Flash Memory 1 die of 32 Mbit (2Mb x16) Asynchronous Pseudo SRAM` SUPPLY VOLTAGE VDDF = VDDP = VDDQ = 1.7 to 1.95V VPPF = 9V for fast program (12V tolerant)` ELECTRONIC SIGNATURE Manufacturer Code: 2...

product image

M36L0R7050T0 Picture
See larger image
SeekIC No. : 004404843 Detail

M36L0R7050T0: Features: ` MULTI-CHIP PACKAGE 1 die of 128 Mbit (8Mb x16, Multiple Bank, Multi-level, Burst) Flash Memory 1 die of 32 Mbit (2Mb x16) Asynchronous Pseudo SRAM` SUPPLY VOLTAGE VDDF = VDDP = VDDQ =...

M36L0R7050T0 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M36L0R7050T0
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` MULTI-CHIP PACKAGE
   1 die of 128 Mbit (8Mb x16, Multiple Bank, Multi-level, Burst) Flash Memory
   1 die of 32 Mbit (2Mb x16) Asynchronous Pseudo SRAM
` SUPPLY VOLTAGE
   VDDF = VDDP = VDDQ = 1.7 to 1.95V
   VPPF = 9V for fast program (12V tolerant)
` ELECTRONIC SIGNATURE
   Manufacturer Code: 20h
   Device Code (Top Flash Configuration) M36L0R7050T0: 88C4h
   Device Code (Bottom Flash Configuration) M36L0R7050B0: 88C5h
` PACKAGE
   Compliant with Lead-Free Soldering Processes
    Lead-Free Versions
FLASH MEMORY
` SYNCHRONOUS / ASYNCHRONOUS READ
   Synchronous Burst Read mode: 54MHz
   Asynchronous Page Read mode
   Random Access: 85ns
` SYNCHRONOUS BURST READ SUSPEND
` PROGRAMMING TIME
   10µs typical Word program time using Buffer Program
` MEMORY ORGANIZATION
   Multiple Bank Memory Array: 8 Mbit Banks
   Parameter Blocks (Top or Bottom location)
` DUAL OPERATIONS
   program/erase in one Bank while read in others
   No delay between read and write operations
` SECURITY
   64 bit unique device number
   2112 bit user programmable OTP Cells
` BLOCK LOCKING
   All blocks locked at power-up
   Any combination of blocks can be locked with zero latency
   WPF for Block Lock-Down
   Absolute Write Protection with VPPF = VSS
` COMMON FLASH INTERFACE (CFI)
` 100,000 PROGRAM/ERASE CYCLES per BLOCK
PSRAM
` ACCESS TIME: 85ns
` LOW STANDBY CURRENT: 100µA
` DEEP POWER-DOWN CURRENT: 10µA
` BYTE CONTROL: UBP/LBP
` PROGRAMMABLE PARTIAL ARRAY
` 8 WORD PAGE ACCESS CAPABILITY: 25ns
` PARTIAL POWER-DOWN MODES
   Deep Power-Down
   4 Mbit Partial Power-Down
   8 Mbit Partial Power-Down
   16 Mbit Partial Power-Down

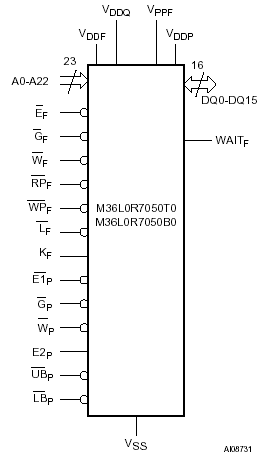

Pinout

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
Min
Max
TA
 Ambient Operating Temperature
25
85
TBIAS
 Temperature Under Bias
25
85
TSTG
 Storage Temperature
65
125
TLEAD
 Lead Temperature during Soldering
(1)
VIO
 Input or Output Voltage
0.5
3.6
V
VDDF, VDDQ,
VDDP
 Core and Input/Output Supply Voltages
0.2
2.5
V
VPPF
 Flash Program Voltage
0.2
14
V
IO
 Output Short Circuit Current
100
mA
tVPPFH
 Time for VPPF at VPPFH
100
hours
Note: 1. Compliant with the JEDEC Std J-STD-020B (for small body, Sn-Pb or Pb assembly), the ST ECOPACK®
              7191395 specification, and the European directive on Restrictions on Hazardous Substances (RoHS)
              2002/95/EU.


Description

The M36L0R7050T0 and M36L0R7050B0 combine two memory devices in a Multi-Chip Package: a 128-Mbit, Multiple Bank Flash memory, the M30L0R7000T0 or M30L0R7000B0, and a 32- Mbit PseudoSRAM, the M69AR048B. Recommended operating conditions do not allow more than one memory to be active at the same time.

The memory M36L0R7050T0 and M36L0R7050B0 is offered in a Stacked TFBGA88 (8x10mm, 8x10 ball array, 0.8mm pitch) package. In addition to the standard version, the packages of M36L0R7050T0 and M36L0R7050B0 are also available in Lead-free version, in compliance with JEDEC Std J-STD-020B, the ST ECOPACK 7191395 Specification, and the RoHS (Restriction of Hazardous Substances) directive.

All packages of M36L0R7050T0 and M36L0R7050B0 are compliant with Lead-free soldering processes.

The memory of M36L0R7050T0 and M36L0R7050B0 is supplied with all the bits erased (set to '1').
