M28W320ECB

Features: `SUPPLY VOLTAGE VDD = 2.7V to 3.6V Core Power Supply VDDQ= 1.65V to 3.6V for Input/Output VPP = 12V for fast Program (optional)`ACCESS TIME: 70, 85, 90,100ns`PROGRAMMING TIME: 10s typical Double Word Programming Option Quadruple Word Programming Option`COMMON FLASH INTERFACE`MEMORY BLOCK...

product image

M28W320ECB Picture
See larger image
SeekIC No. : 004404321 Detail

M28W320ECB: Features: `SUPPLY VOLTAGE VDD = 2.7V to 3.6V Core Power Supply VDDQ= 1.65V to 3.6V for Input/Output VPP = 12V for fast Program (optional)`ACCESS TIME: 70, 85, 90,100ns`PROGRAMMING TIME: 10s typical ...

M28W320ECB Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M28W320ECB
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`SUPPLY VOLTAGE
VDD = 2.7V to 3.6V Core Power Supply
VDDQ= 1.65V to 3.6V for Input/Output
VPP = 12V for fast Program (optional)
`ACCESS TIME: 70, 85, 90,100ns
`PROGRAMMING TIME:
10s typical
Double Word Programming Option
Quadruple Word Programming Option
`COMMON FLASH INTERFACE
`MEMORY BLOCKS
Parameter Blocks (Top or Bottom location)
Main Blocks
`BLOCK LOCKING
All blocks locked at Power Up
Any combination of blocks can be locked
WP for Block Lock-Down
`SECURITY
128 bit user Programmable OTP cells
64 bit unique device identifier
`AUTOMATIC STAND-BY MODE
`PROGRAM and ERASE SUSPEND
`100,000 PROGRAM/ERASE CYCLES per BLOCK
`ELECTRONIC SIGNATURE
Manufacturer Code: 20h
Top Device Code, M28W320ECT: 88BAh
Bottom Device Code, M28W320ECB: 88BBh


Pinout

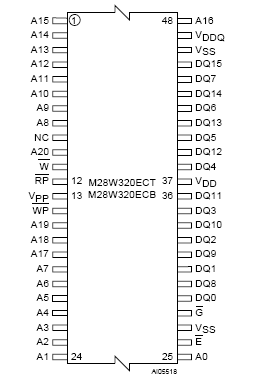

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
Min
Max
TA Ambient Operating Temperature (1)
40
85
°C
TBIAS Temperature Under Bias
40
125
°C
TSTG Storage Temperature
55
155
°C
VIO Input or Output Voltage
0.6
VDDQ+0.6
V
VDD, VDDQ Supply Voltage
0.6
4.1
V
VPP Program Voltage
0.6
13
V
