LR38574

Features: · Designed for 1/3-type 1 090 k/1 310 k-pixel CCD area sensors· Frequency of driving horizontal CCD : 12.27 MHz· Both double speed drive monitoring mode and still mode are possible· Two still mode types : 3 fields period and 4 fields period· External shutter control function with serial ...

product image

LR38574 Picture
See larger image
SeekIC No. : 004399393 Detail

LR38574: Features: · Designed for 1/3-type 1 090 k/1 310 k-pixel CCD area sensors· Frequency of driving horizontal CCD : 12.27 MHz· Both double speed drive monitoring mode and still mode are possible· Two st...

LR38574 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LR38574
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Designed for 1/3-type 1 090 k/1 310 k-pixel CCD area sensors
· Frequency of driving horizontal CCD : 12.27 MHz
· Both double speed drive monitoring mode and still mode are possible
· Two still mode types : 3 fields period and 4 fields period
· External shutter control function with serial data input is possible
· +3 V and +4.5 V power supplies
· Package : 48-pin QFP (QFP048-P-0707) 0.5 mm pin-pitch


Pinout

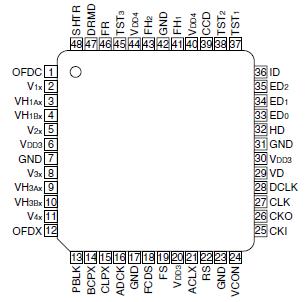

Connection Diagram


Specifications

PARAMETER

SYMBOL

RATING

UNIT

Supply voltage

VDD3, VDD4

-0.3 to +6.0

V

Input voltage

VI3

-0.3 to VDD3 + 0.3

V

VI4

-0.3 to VDD4 + 0.3

V

Output voltage

VO3

-0.3 to VDD3 + 0.3

V

VO4

-0.3 to VDD4 + 0.3

V

Operating temperature

TOPR

-20 to +70

Storage temperature

TSTG

-55 to +150




Description

The LR38574 is a CMOS timing generator IC which generates timing pulses for driving 1 090 k/ 1 310 k-pixel CCD area sensors and processing pulses.
