LR38516

Features: · Designed for 350 k-pixel progressive scan color CCD area sensors· Frame rate : 30 frame/s· Shutter speed can be controlled in 1H period using a serial code· TV mode selection, power mode selection and the phase selection of DCLK can be also controlled by using a serial code· +3 V, +4.5...

product image

LR38516 Picture
See larger image
SeekIC No. : 004399392 Detail

LR38516: Features: · Designed for 350 k-pixel progressive scan color CCD area sensors· Frame rate : 30 frame/s· Shutter speed can be controlled in 1H period using a serial code· TV mode selection, power mode...

LR38516 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LR38516
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Designed for 350 k-pixel progressive scan color CCD area sensors
· Frame rate : 30 frame/s
· Shutter speed can be controlled in 1H period using a serial code
· TV mode selection, power mode selection and the phase selection of DCLK can be also controlled by using a serial code
· +3 V, +4.5 V and +5 V power supplies
· Package : 48-pin QFP (QFP048-P-0707) 0.5 mm pin-pitch


Pinout

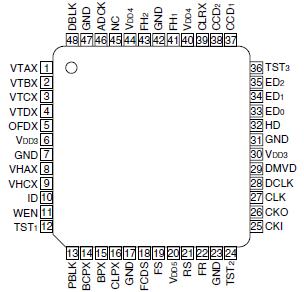

Connection Diagram


Specifications

PARAMETER

SYMBOL

RATING

UNIT

Supply voltage

VDD3, VDD4, VDD5

-0.3 to +6.0

V

Input voltage

VI3

-0.3 to VDD3 + 0.3

V

VI4

-0.3 to VDD4 + 0.3

V

Output voltage

VO3

-0.3 to VDD3 + 0.3

V

VO4

-0.3 to VDD4 + 0.3

V

VO5

-0.3 to VDD5 + 0.3

V

Operating temperature

TOPR

-20 to +70

Storage temperature

TSTG

-55 to +150




Description

The LR38516 is a CMOS timing generator IC which is designed for video-camcorders, and which generates timing pulses for driving 350 k-pixel progressive scan color CCD area sensors, synchronous pulses for TV signals and processing pulses for video signals.
