LR38266

Features: · Designed for 270 k/320 k/410 k/470 k color CCDs with Mg, G, Cy, and Ye complementary color filters· Switchable between NTSC and PAL modes· External performance control· Variable GAMMA and KNEE response· 8 to 10-bit digital input· Analog Y&C output by built-in 8-bit 2 ch DA converte...

product image

LR38266 Picture
See larger image
SeekIC No. : 004399390 Detail

LR38266: Features: · Designed for 270 k/320 k/410 k/470 k color CCDs with Mg, G, Cy, and Ye complementary color filters· Switchable between NTSC and PAL modes· External performance control· Variable GAMMA an...

LR38266 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LR38266
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Designed for 270 k/320 k/410 k/470 k color CCDs with Mg, G, Cy, and Ye complementary color filters
· Switchable between NTSC and PAL modes
· External performance control
· Variable GAMMA and KNEE response
· 8 to 10-bit digital input
· Analog Y&C output by built-in 8-bit 2 ch DA converter
· Switchable between Y, U/V (16 bits) and U/Y/V/Y (8 bits) digital video output
· Line-lock and external lock function
· CPU interface input/output
·Accumulator to control auto exposure and auto white balance
· Single +3.3 V power supply
· Package : 100-pin LQFP (LQFP100-P-1414) 0.5 mm pin-pitch


Pinout

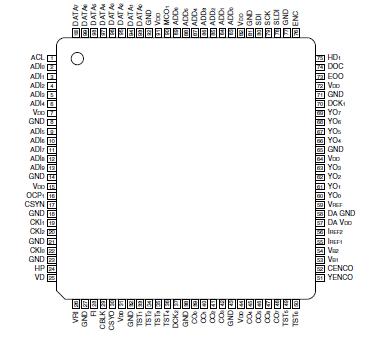

Connection Diagram


Specifications

PARAMETER

SYMBOL

RATING

UNIT

Power supply voltage

VDD

-0.3 to +4.6

V

Input voltage

VI

-0.3 to VDD + 0.3

V

Output voltage

VO

-0.3 to VDD + 0.3

V

Storage temperature

TSTG

-55 to +150




Description

·The LR38266 is a CMOS digital signal processor for color CCD camera systems of 270 k/320 k/410 k/470 k-pixel CCD with complementary color filters.
